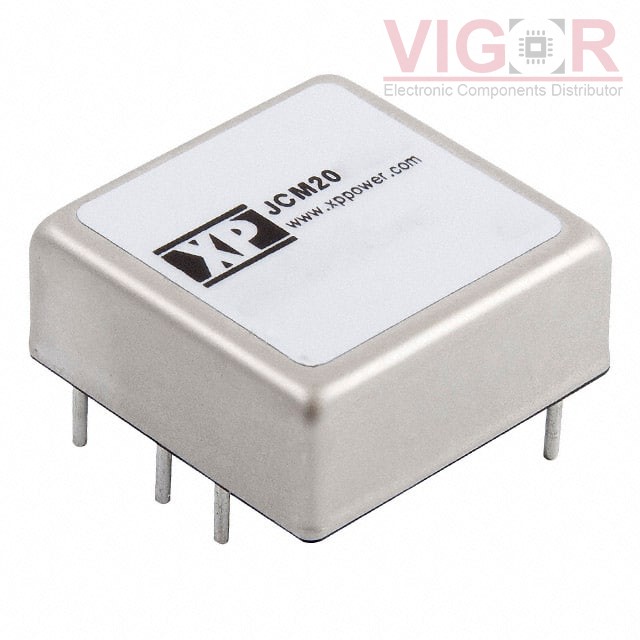

JCM2012S3V3

Part No :: JCM2012S3V3

Manufacturer: XP Power

VIGOR # :: 4103856

Description: DC DC CONVERTER 3.3V 20W

Catalog: DC DC Converters

DataSheet: JCM2012S3V3 PDF

Country of origin: -

Date code: -

JCM2012S3V3 Specifications

Type	Description
Series:	JCM (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	4.5A
Power (Watts):	20 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
FED20-24S3P3W Match 88%	P-Duke Technology, Inc. ISOLATED/20W /VOUT:3.3	JCM2012S3V3 vs FED20-24S3P3W
URB2403YMD-20WR3 Match 90%	Mornsun DC DC CONVERTER 3.3V 17W	JCM2012S3V3 vs URB2403YMD-20WR3
PXD2012S3P3 Match 96%	TDK-Lambda, Inc. DC DC CONVERTER 3.3V 20W	JCM2012S3V3 vs PXD2012S3P3
THN 15-1210N Match 91%	TRACO Power DC DC CONVERTER 3.3V 15W	JCM2012S3V3 vs THN 15-1210N
PKE3210PI Match 90%	Flex Power Modules DC DC CONVERTER 3.3V 15W	JCM2012S3V3 vs PKE3210PI
JCM1512S3V3 Match 86%	XP Power DC DC CONVERTER 3.3V 15W	JCM2012S3V3 vs JCM1512S3V3
