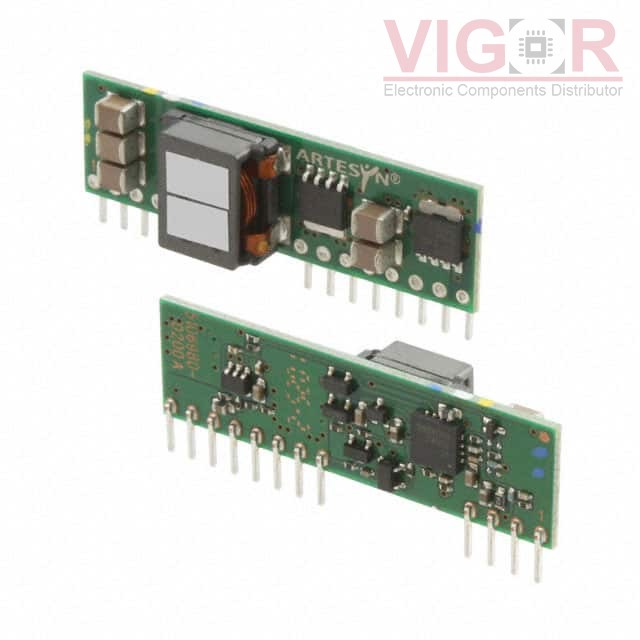

PTV12020LAH

Part No :: PTV12020LAH

Manufacturer: Texas Instruments

VIGOR # :: 4104095

Description: DC DC CONVERTER 0.8-1.8V

Catalog: DC DC Converters

DataSheet: PTV12020LAH PDF

Country of origin: -

Date code: -

PTV12020LAH Specifications

Type	Description
Series:	PTV12020
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	0.8 ~ 1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	16A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module
Size / Dimension:	1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTV12020WAD Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V 16A	PTV12020LAH vs PTV12020WAD
PTV12020LAD Match 100%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 0.8-1.8V 28.8W	PTV12020LAH vs PTV12020LAD
PTV12020WAH Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V	PTV12020LAH vs PTV12020WAH
LSN2-T/16-D12N-C Match 100%	Murata Power Solutions DC DC CONVERTER 0.75-5V 80W	PTV12020LAH vs LSN2-T/16-D12N-C
LSN2-T/16-D12-C Match 100%	Murata Power Solutions DC DC CONVERTER 0.75-5V 80W	PTV12020LAH vs LSN2-T/16-D12-C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 579

Shipped from

HK warehouse

Expected Shipping Date

Jul 24 - Jul 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$21.6600~~	~~$21.66~~
10	~~$21.3281~~	~~$213.28~~
40	~~$20.9947~~	~~$839.79~~
120	~~$18.3287~~	~~$2 199.45~~
520	~~$17.7288~~	~~$9 218.99~~

Current price of PTV12020LAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
