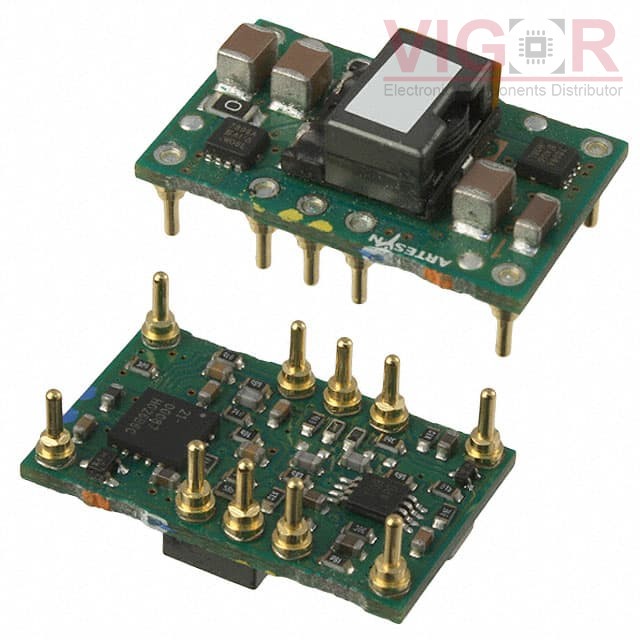

PTH12060LAD

Part No :: PTH12060LAD

Manufacturer: Emerson Embedded Power (Artesyn Embedded Technologies)

VIGOR # :: 4104288

Description: DC DC CONVERTER 0.8-1.8V 55W

Catalog: DC DC Converters

DataSheet: PTH12060LAD PDF

Country of origin: -

Date code: -

PTH12060LAD Specifications

Type	Description
Series:	PTH12060 (55W)
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	0.8 ~ 1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	55 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Through Hole
Package / Case:	10-DIP Module
Size / Dimension:	0.10" L x 0.62" W x 0.35" H (2.5mm x 15.8mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH12060LAH Match 100%	Texas Instruments DC DC CONVERTER 0.8-1.8V	PTH12060LAD vs PTH12060LAH
PTH12010YAH Match 74%	VIGOR PTH12010Y 15 A 12-V INPUT BUS TE	PTH12060LAD vs PTH12010YAH
PTH12060WAD Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V 10A	PTH12060LAD vs PTH12060WAD
PTH12060YAH Match 100%	Texas Instruments DC DC CONVERTER 0.55-1.8V	PTH12060LAD vs PTH12060YAH
PTH12060WAH Match 100%	VIGOR PTH12060W 1.2 TO 5.5 V 10-A, 12-	PTH12060LAD vs PTH12060WAH
PMF8518LP Match 100%	Flex Power Modules DC DC CONVERTER 1.2-5.5V 55W	PTH12060LAD vs PMF8518LP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1492

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$14.3708~~	~~$14.37~~
168	~~$14.3708~~	~~$2 414.29~~

Current price of PTH12060LAD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
