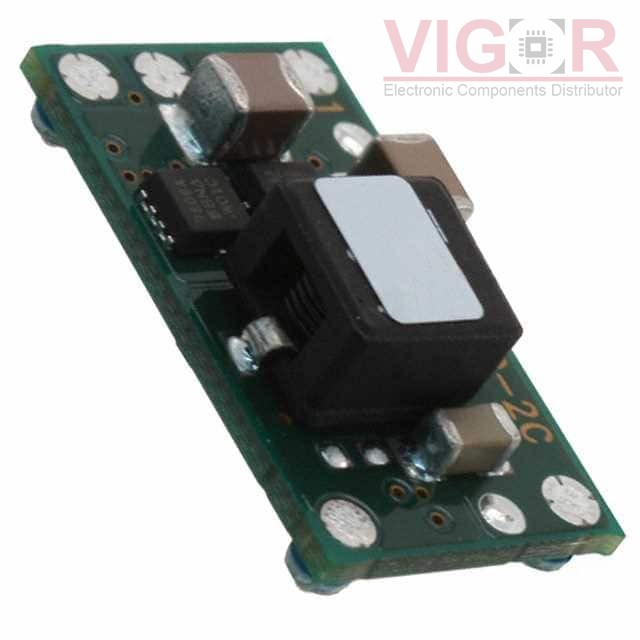

PTH12050WAZT

Part No :: PTH12050WAZT

Manufacturer: Texas Instruments

VIGOR # :: 4104658

Description: DC DC CONVERTER 1.2-5.5V 6A

Catalog: DC DC Converters

DataSheet: PTH12050WAZT PDF

Country of origin: -

Date code: -

PTH12050WAZT Specifications

Type	Description
Series:	PTH12050
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	1.2 ~ 5.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	93%
Mounting Type:	Surface Mount
Package / Case:	6-SMD Module
Size / Dimension:	0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH12050YAST Match 100%	VIGOR PTH12050Y 6 A, 12-V INPUT NON-IS	PTH12050WAZT vs PTH12050YAST
PTH12050LAZ Match 100%	Texas Instruments DC DC CONVERTER 0.8-1.8V 6A	PTH12050WAZT vs PTH12050LAZ
PTH12050WAS Match 100%	VIGOR PTH12050W 1.2 TO 5.5 V 6-A, 12-V	PTH12050WAZT vs PTH12050WAS
PTH12050YAS Match 100%	VIGOR PTH12050Y 6 A, 12-V INPUT NON-IS	PTH12050WAZT vs PTH12050YAS
PTH12050LAZT Match 100%	VIGOR PTH12050L 0.8 TO 1.8 V 6-A, 12-V	PTH12050WAZT vs PTH12050LAZT
PTH12050YAZT Match 100%	VIGOR PTH12050Y 6 A, 12-V INPUT NON-IS	PTH12050WAZT vs PTH12050YAZT

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1561

Shipped from

HK warehouse

Expected Shipping Date

Sep 03 - Sep 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$13.1100~~	~~$13.11~~
250	~~$10.9243~~	~~$2 731.08~~
500	~~$10.7257~~	~~$5 362.85~~

Current price of PTH12050WAZT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
