AM3D-1209SZ

Part No :: AM3D-1209SZ

Manufacturer: DComponents

VIGOR # :: 4104977

Description: DC DC CONVERTER 9V 3W

Catalog: DC DC Converters

DataSheet: AM3D-1209SZ PDF

Country of origin: -

Date code: -

AM3D-1209SZ Specifications

Type	Description
Series:	AM3D-Z (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	333mA
Power (Watts):	3 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
3S7A_1209S1U Match 100%	TE Connectivity AMP Connectors DC-DC	AM3D-1209SZ vs 3S7A_1209S1U
MEV3S1209SC Match 86%	Murata Power Solutions DC DC CONVERTER 9V 3W	AM3D-1209SZ vs MEV3S1209SC
IR1209SA Match 100%	XP Power DC DC CONVERTER 9V 3W	AM3D-1209SZ vs IR1209SA
3S7B_1209S3UP Match 86%	TE Connectivity AMP Connectors DC-DC	AM3D-1209SZ vs 3S7B_1209S3UP
3S7B_1209S3U Match 86%	TE Connectivity AMP Connectors DC-DC	AM3D-1209SZ vs 3S7B_1209S3U
3S7A_1209S1.5UP Match 95%	TE Connectivity AMP Connectors DC-DC	AM3D-1209SZ vs 3S7A_1209S1.5UP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 657

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.5400~~	~~$5.54~~

Current price of AM3D-1209SZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

V300A12C500BF2

DC DC CONVERTER 12V 500W

V150A48H500BG3

DC DC CONVERTER 48V 500W

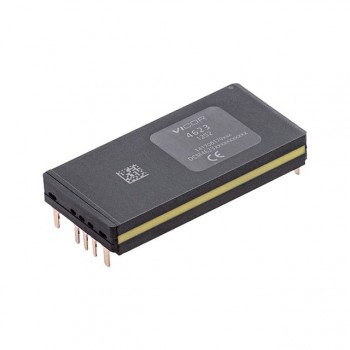

DCM4623TD2H53E0T70
