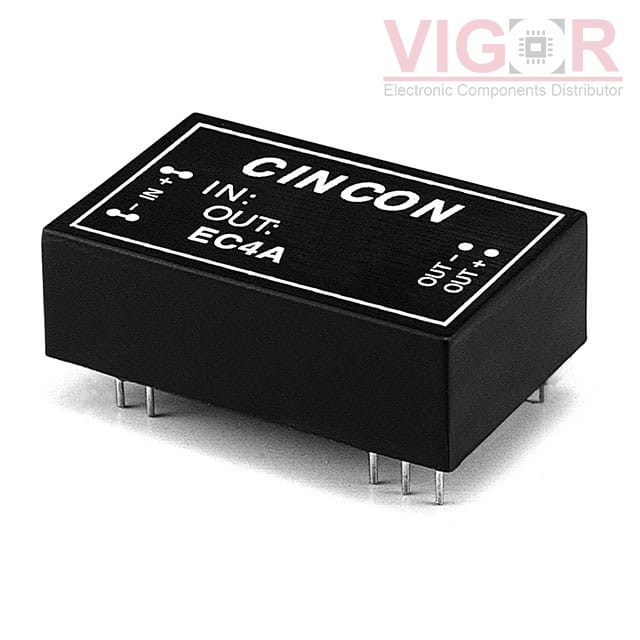

EC4A01H

Part No :: EC4A01H

Manufacturer: Cincon

VIGOR # :: 4105053

Description: DC DC CONVERTER 5V 5W

Catalog: DC DC Converters

DataSheet: EC4A01H PDF

Country of origin: -

Date code: -

EC4A01H Specifications

Type	Description
Series:	EC4A (6W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	5 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-25°C ~ 71°C
Efficiency:	77%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 14 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
JTB0524S05 Match 91%	XP Power DC DC CONVERTER 5V 5W	EC4A01H vs JTB0524S05
EC4AW01H Match 100%	Cincon DC DC CONVERTER 5V 5W	EC4A01H vs EC4AW01H
EC4A01HM-E Match 91%	Cincon DC DC CONVERTER 5V 5W	EC4A01H vs EC4A01HM-E
EC4AB01H Match 100%	Cincon DC DC CONVERTER 5V 5W	EC4A01H vs EC4AB01H
EC4AW01HM Match 91%	Cincon DC DC CONVERTER 5V 5W	EC4A01H vs EC4AW01HM
EC4A01H-E Match 100%	Cincon DC DC CONVERTER 5V 5W	EC4A01H vs EC4A01H-E

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1014

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.9200~~	~~$12.92~~
5	~~$12.7900~~	~~$63.95~~
10	~~$12.6630~~	~~$126.63~~
25	~~$12.4097~~	~~$310.24~~
50	~~$12.0373~~	~~$601.87~~
100	~~$11.5559~~	~~$1 155.59~~

Current price of EC4A01H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

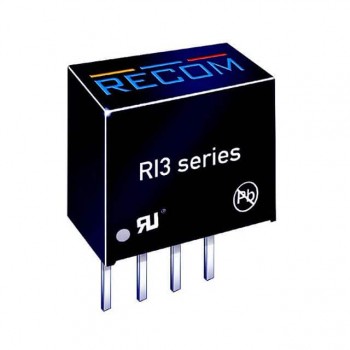

RI3-0505S/H3
