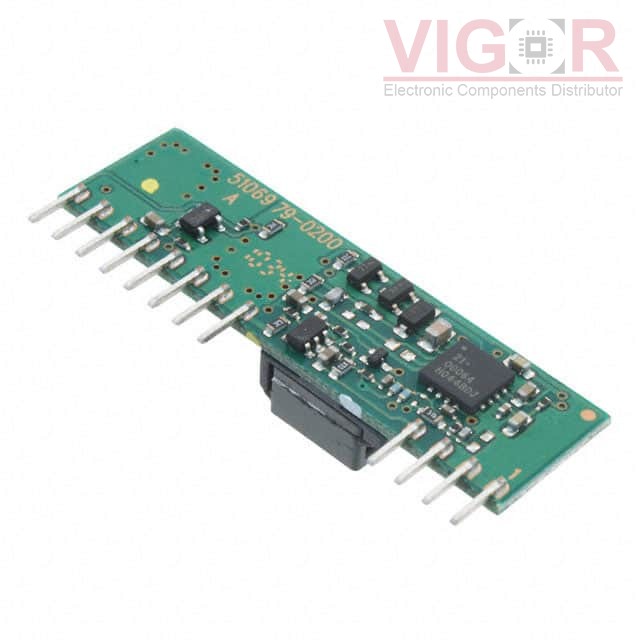

PTV05020WAD

Part No :: PTV05020WAD

Manufacturer: Emerson Embedded Power (Artesyn Embedded Technologies)

VIGOR # :: 4105161

Description: DC DC CONVERTER 0.8-3.6V 64.8W

Catalog: DC DC Converters

DataSheet: PTV05020WAD PDF

Country of origin: -

Date code: -

PTV05020WAD Specifications

Type	Description
Series:	PTV05020 (65W)
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.8 ~ 3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	18A
Power (Watts):	64.8 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	96%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module
Size / Dimension:	1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTV05020WAH Match 100%	VIGOR PTV05020W 18-A, 5-V INPUT, NON-I	PTV05020WAD vs PTV05020WAH
LSN2-T/16-W3N-C Match 77%	Murata Power Solutions DC DC CONVERTER 0.75-3.3V 52W	PTV05020WAD vs LSN2-T/16-W3N-C
LSN2-T/16-W3-C Match 77%	Murata Power Solutions DC DC CONVERTER 0.75-3.3V 52W	PTV05020WAD vs LSN2-T/16-W3-C
PT6464N Match 64%	Texas Instruments DC DC CONVERTER 1.8V	PTV05020WAD vs PT6464N
PT6462N Match 64%	Texas Instruments DC DC CONVERTER 2.5V	PTV05020WAD vs PT6462N
PT6467N Match 64%	Texas Instruments DC DC CONVERTER 1V	PTV05020WAD vs PT6467N
