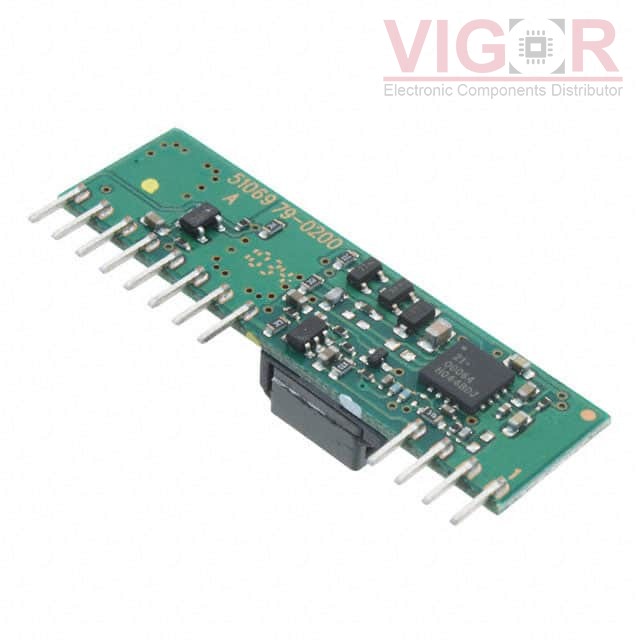

PTV05020WAH

Part No :: PTV05020WAH

Manufacturer: VIGOR

VIGOR # :: 4153263

Description: PTV05020W 18-A, 5-V INPUT, NON-I

Catalog: DC DC Converters

DataSheet: PTV05020WAH PDF

Country of origin: -

Date code: -

PTV05020WAH Specifications

Type	Description
Series:	PTV05020W
Package:	Bulk
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.8 ~ 3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	18A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	94%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module
Size / Dimension:	1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTV05020WAD Match 100%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 0.8-3.6V 64.8W	PTV05020WAH vs PTV05020WAD
LSN2-T/16-W3N-C Match 83%	Murata Power Solutions DC DC CONVERTER 0.75-3.3V 52W	PTV05020WAH vs LSN2-T/16-W3N-C
LSN2-T/16-W3-C Match 83%	Murata Power Solutions DC DC CONVERTER 0.75-3.3V 52W	PTV05020WAH vs LSN2-T/16-W3-C
PT6464N Match 64%	Texas Instruments DC DC CONVERTER 1.8V	PTV05020WAH vs PT6464N
PT6462N Match 64%	Texas Instruments DC DC CONVERTER 2.5V	PTV05020WAH vs PT6462N
PT6467N Match 64%	Texas Instruments DC DC CONVERTER 1V	PTV05020WAH vs PT6467N

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 363

Shipped from

HK warehouse

Expected Shipping Date

Aug 23 - Aug 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$19.1800~~	~~$19.18~~
40	~~$19.1800~~	~~$767.20~~

Current price of PTV05020WAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
