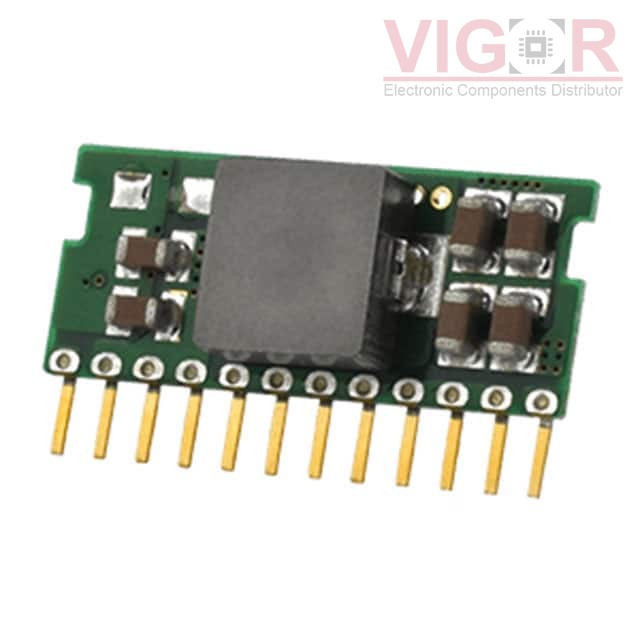

P783F-Q24-S5-S

Part No :: P783F-Q24-S5-S

Manufacturer: CUI Inc.

VIGOR # :: 4105845

Description: DC DC CONVERTER 5V 15W

Catalog: DC DC Converters

DataSheet: P783F-Q24-S5-S PDF

Country of origin: -

Date code: -

P783F-Q24-S5-S Specifications

Type	Description
Series:	P783F-S
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	8V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	15 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	93%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module
Size / Dimension:	1.20" L x 0.23" W x 0.49" H (30.6mm x 5.8mm x 12.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
P783-Q24-S5-S Match 100%	CUI Inc. DC DC CONVERTER 5V 15W	P783F-Q24-S5-S vs P783-Q24-S5-S
K7805-3AR3 Match 100%	Mornsun DC DC CONVERTER 5V 15W	P783F-Q24-S5-S vs K7805-3AR3
PT6322N Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	P783F-Q24-S5-S vs PT6322N
PT6322R Match 100%	Texas Instruments DC DC CONVERTER 5V	P783F-Q24-S5-S vs PT6322R
PT6206N Match 74%	Texas Instruments DC DC CONVERTER 5V	P783F-Q24-S5-S vs PT6206N
PT6222R Match 74%	Texas Instruments DC DC CONVERTER 5V	P783F-Q24-S5-S vs PT6222R

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 68

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.7500~~	~~$12.75~~

Current price of P783F-Q24-S5-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
