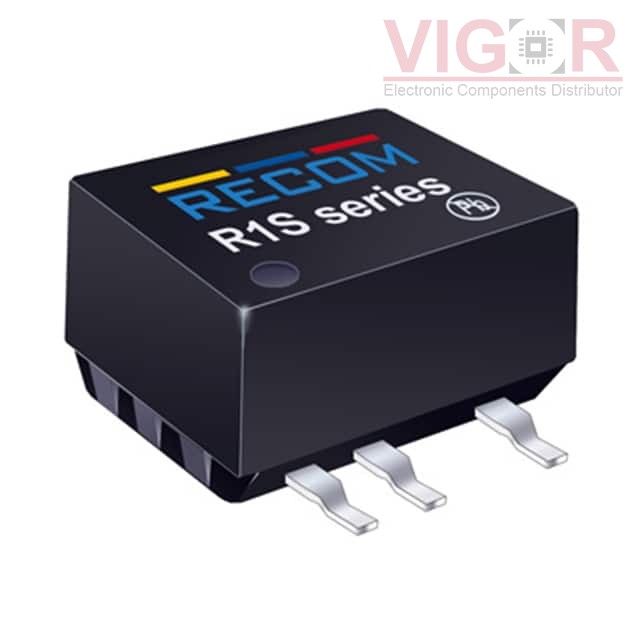

R1S-1505/H-R

Part No :: R1S-1505/H-R

Manufacturer: RECOM Power

VIGOR # :: 4106112

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: R1S-1505/H-R PDF

Country of origin: -

Date code: -

R1S-1505/H-R Specifications

Type	Description
Series:	ECONOLINE R1S (1W)
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	13.5V
Voltage - Input (Max):	16.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial), Medical
Features:	SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	78%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module, 5 Leads
Size / Dimension:	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PUB2405S1M Match 100%	Flex Power Modules DC DC CONVERTER 5V 1W	R1S-1505/H-R vs PUB2405S1M
AM1LS-1505S-NZ Match 91%	DComponents DC DC CONVERTER 5V 1W	R1S-1505/H-R vs AM1LS-1505S-NZ
R1S-1505/HP-R Match 100%	RECOM Power DC DC CONVERTER 5V 1W	R1S-1505/H-R vs R1S-1505/HP-R
R1S-1505/H Match 100%	RECOM Power DC DC CONVERTER 5V 1W	R1S-1505/H-R vs R1S-1505/H
R1S-1505/HP Match 100%	RECOM Power DC DC CONVERTER 5V 1W	R1S-1505/H-R vs R1S-1505/HP
ISE1505A-H Match 100%	XP Power DC DC CONVERTER 5V 1W	R1S-1505/H-R vs ISE1505A-H
