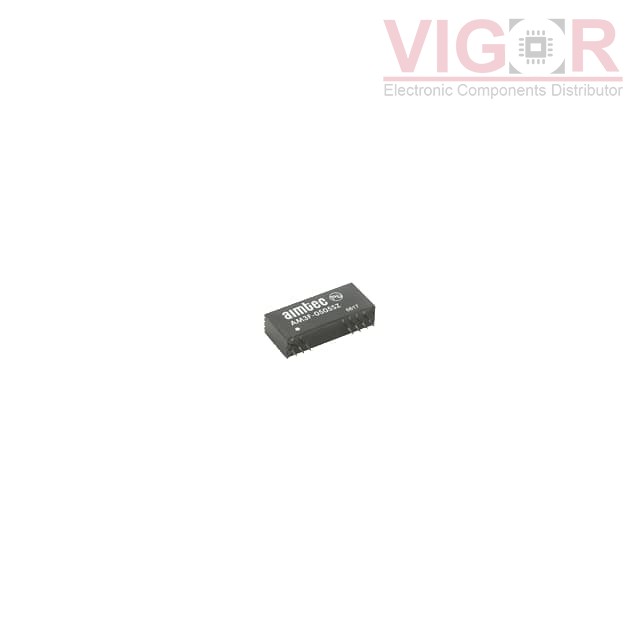

AM3F-1224SZ

Part No :: AM3F-1224SZ

Manufacturer: DComponents

VIGOR # :: 4106869

Description: DC DC CONVERTER 24V 3W

Catalog: DC DC Converters

DataSheet: AM3F-1224SZ PDF

Country of origin: -

Date code: -

AM3F-1224SZ Specifications

Type	Description
Series:	AM3F-Z (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	125mA
Power (Watts):	3 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-25°C ~ 71°C (With Derating)
Efficiency:	73%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module, 7 Leads
Size / Dimension:	1.26" L x 0.32" W x 0.57" H (32.0mm x 8.0mm x 14.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM3F-1218SZ Match 63%	DComponents DC DC CONVERTER 18V 3W	AM3F-1224SZ vs AM3F-1218SZ
AM3F-1224SH52Z Match 86%	DComponents DC DC CONVERTER 24V 3W	AM3F-1224SZ vs AM3F-1224SH52Z
AM2F-1224SZ Match 71%	DComponents DC DC CONVERTER 24V 2W	AM3F-1224SZ vs AM2F-1224SZ
AM3F-1224SH30Z Match 86%	DComponents DC DC CONVERTER 24V 3W	AM3F-1224SZ vs AM3F-1224SH30Z
AM2F-1218SZ Match 57%	DComponents DC DC CONVERTER 18V 2W	AM3F-1224SZ vs AM2F-1218SZ
AM2F-1224SH30Z Match 56%	DComponents DC DC CONVERTER 24V 2W	AM3F-1224SZ vs AM2F-1224SH30Z

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1020

Shipped from

HK warehouse

Expected Shipping Date

Sep 09 - Sep 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$9.2700~~	~~$9.27~~

Current price of AM3F-1224SZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

R0.25D12-2412/HP

DC DC CONVERTER +/-12V 250MW

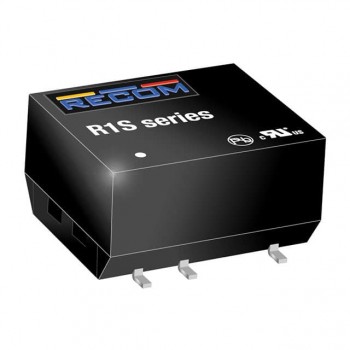

R1S12-2424/P-R
