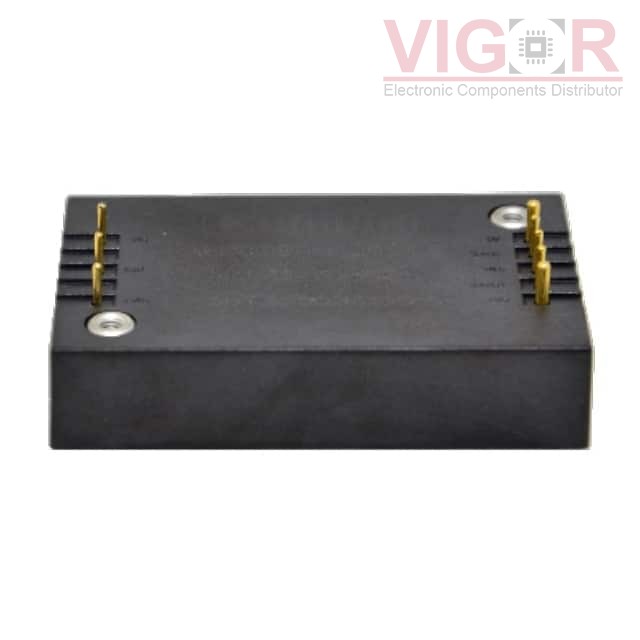

AM75QB-4805SH22-NZ-192

Part No :: AM75QB-4805SH22-NZ-192

Manufacturer: DComponents

VIGOR # :: 4107116

Description: DC DC CONVERTER 5V 75W

Catalog: DC DC Converters

DataSheet: AM75QB-4805SH22-NZ-192 PDF

Country of origin: -

Date code: -

AM75QB-4805SH22-NZ-192 Specifications

Type	Description
Series:	AM75QB-NZ (75W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	15A
Power (Watts):	75 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	91%
Mounting Type:	Through Hole
Package / Case:	Quarter Brick
Size / Dimension:	2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm)
Supplier Device Package:	Quarter Brick
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PRQ75W-Q48-S5-D Match 100%	CUI Inc. DC-DC ISOLATED, 75 W, 18~75 VDC	AM75QB-4805SH22-NZ-192 vs PRQ75W-Q48-S5-D
PRQ75W-Q48-S5-H-D Match 100%	CUI Inc. DC-DC ISOLATED, 75 W, 18~75 VDC	AM75QB-4805SH22-NZ-192 vs PRQ75W-Q48-S5-H-D
AM75QB-4805SH22-NZ-K-160 Match 100%	DComponents DC DC CONVERTER 5V 75W	AM75QB-4805SH22-NZ-192 vs AM75QB-4805SH22-NZ-K-160
AM75QB-4805SH22-NZ Match 100%	DComponents DC DC CONVERTER 5V 75W	AM75QB-4805SH22-NZ-192 vs AM75QB-4805SH22-NZ
75QBW4_4805S2.25 Match 100%	TE Connectivity AMP Connectors DC-DC	AM75QB-4805SH22-NZ-192 vs 75QBW4_4805S2.25
AM75QB-4805SH22-NZ-K Match 100%	DComponents DC DC CONVERTER 5V 75W	AM75QB-4805SH22-NZ-192 vs AM75QB-4805SH22-NZ-K

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 987

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$85.4700~~	~~$85.47~~

Current price of AM75QB-4805SH22-NZ-192 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

AM1D-2405S-RZ

DC DC CONVERTER 5V 1W

LTM8052AEY#PBF

DC DC CONVERTER 1.2-24V

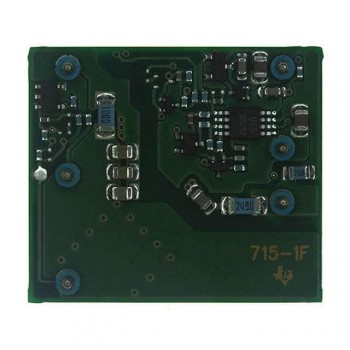

PTMA403033N2AZT
