VQE50W-Q48-S12

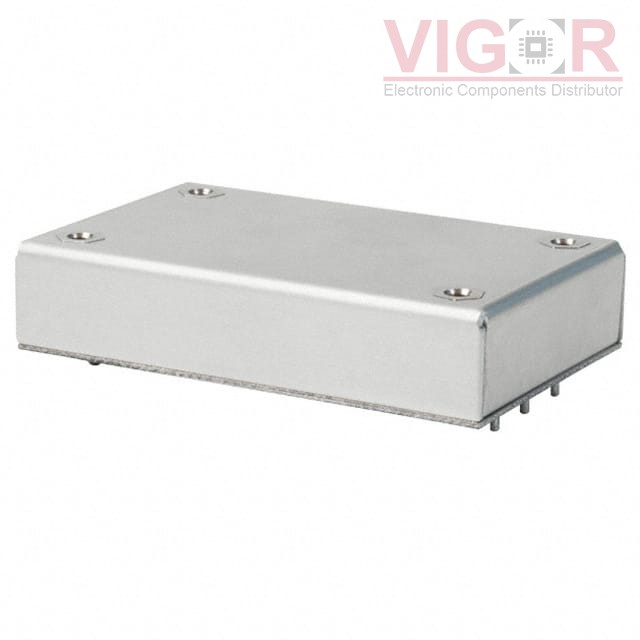

Image is for reference,
please contact us to get the real picture

Part No :: VQE50W-Q48-S12

Manufacturer: CUI Inc.

Description: DC DC CONVERTER 12V 50W

Catalog: DC DC Converters

DataSheet: VQE50W-Q48-S12 PDF

Availability: 629 pieces

Unit Price: ~~$111.10000~~

Current price of VQE50W-Q48-S12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VQE50W-Q48-S12 Specifications

Type	Description
Series:	VQE50W (50W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	4.16A
Power (Watts):	50 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 105°C
Efficiency:	92%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module
Size / Dimension:	2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	EN, UL
Standard Number:	55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-3
