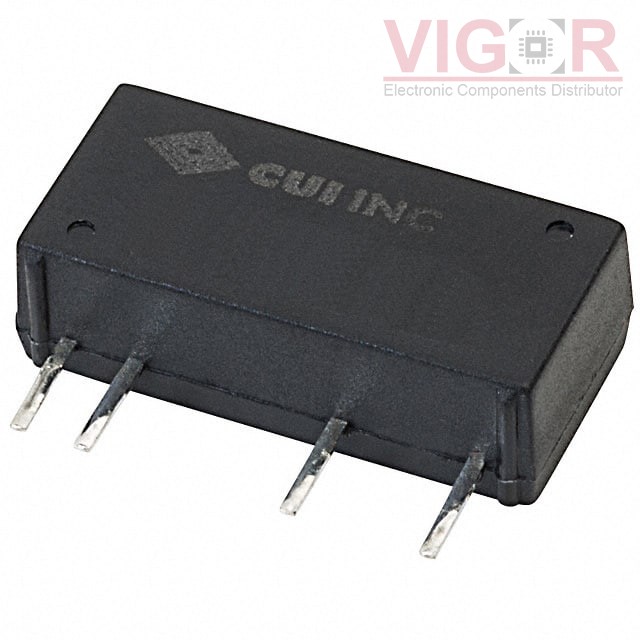

PEM1-S5-S15-S

Part No :: PEM1-S5-S15-S

Manufacturer: CUI Inc.

VIGOR # :: 4108942

Description: DC DC CONVERTER 15V 1W

Catalog: DC DC Converters

DataSheet: PEM1-S5-S15-S PDF

Country of origin: -

Date code: -

PEM1-S5-S15-S Specifications

Type	Description
Series:	PEM1-S (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	67mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	81%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3

Alternative Products

Part Number	Manufacturer & Description	Compare
1S7A_0515S1.5UP Match 91%	TE Connectivity AMP Connectors DC-DC	PEM1-S5-S15-S vs 1S7A_0515S1.5UP
ITV0515SA Match 100%	XP Power DC DC CONVERTER 15V 1W	PEM1-S5-S15-S vs ITV0515SA
PEME1-S5-S15-S Match 100%	CUI Inc. DC DC CONVERTER 15V 1W	PEM1-S5-S15-S vs PEME1-S5-S15-S
PDME1-S5-S15-S Match 91%	CUI Inc. DC DC CONVERTER 15V 1W	PEM1-S5-S15-S vs PDME1-S5-S15-S
1S7B_0515S4UP Match 96%	TE Connectivity AMP Connectors DC-DC	PEM1-S5-S15-S vs 1S7B_0515S4UP
F0515S-1WR3 Match 100%	Mornsun DC DC CONVERTER 15V 1W	PEM1-S5-S15-S vs F0515S-1WR3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1721

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.9200~~	~~$4.92~~
5	~~$4.8480~~	~~$24.24~~
12	~~$4.7767~~	~~$57.32~~
36	~~$4.6364~~	~~$166.91~~
60	~~$4.4960~~	~~$269.76~~
108	~~$4.3555~~	~~$470.39~~
252	~~$4.2150~~	~~$1 062.18~~
504	~~$3.9340~~	~~$1 982.74~~

Current price of PEM1-S5-S15-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
