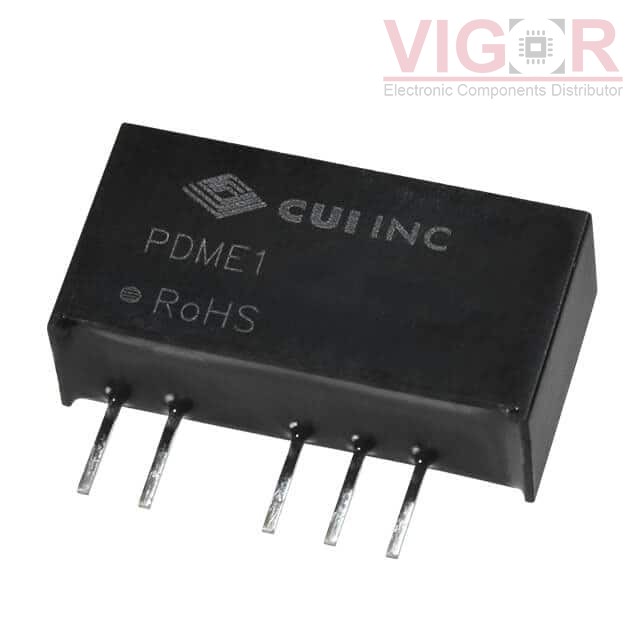

PDME1-S5-S15-S

Part No :: PDME1-S5-S15-S

Manufacturer: CUI Inc.

VIGOR # :: 4123635

Description: DC DC CONVERTER 15V 1W

Catalog: DC DC Converters

DataSheet: PDME1-S5-S15-S PDF

Country of origin: -

Date code: -

PDME1-S5-S15-S Specifications

Type	Description
Series:	PDME1-S (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	67mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	83%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
1S7A_0515S1.5UP Match 100%	TE Connectivity AMP Connectors DC-DC	PDME1-S5-S15-S vs 1S7A_0515S1.5UP
PEM1-S5-S15-S Match 91%	CUI Inc. DC DC CONVERTER 15V 1W	PDME1-S5-S15-S vs PEM1-S5-S15-S
PEME1-S5-S15-S Match 91%	CUI Inc. DC DC CONVERTER 15V 1W	PDME1-S5-S15-S vs PEME1-S5-S15-S
ITB0515S Match 100%	XP Power DC DC CONVERTER 15V 1W	PDME1-S5-S15-S vs ITB0515S
B0515LS-1WR3 Match 100%	Mornsun DC DC CONVERTER 15V 1W	PDME1-S5-S15-S vs B0515LS-1WR3
F0515S-1WR3 Match 91%	Mornsun DC DC CONVERTER 15V 1W	PDME1-S5-S15-S vs F0515S-1WR3
