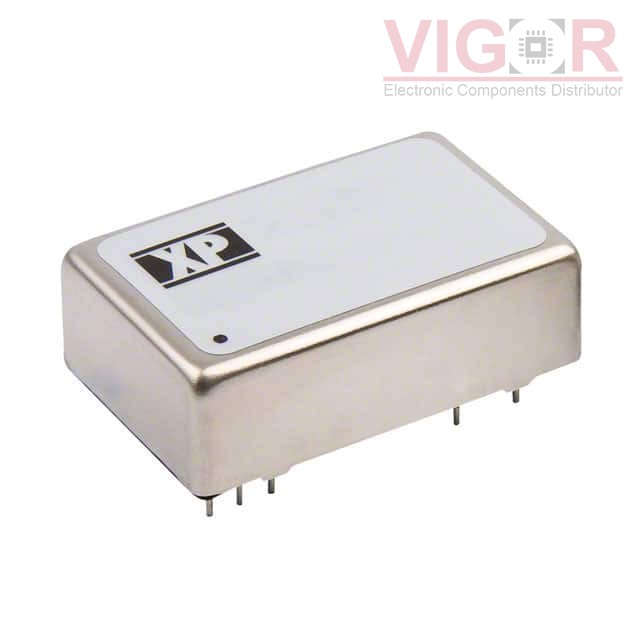

JCG1212S3V3

Part No :: JCG1212S3V3

Manufacturer: XP Power

VIGOR # :: 4109035

Description: DC DC CONVERTER 3.3V 12W

Catalog: DC DC Converters

DataSheet: JCG1212S3V3 PDF

Country of origin: -

Date code: -

JCG1212S3V3 Specifications

Type	Description
Series:	JCG (12W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3.5A
Power (Watts):	12 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JTF0824S3V3 Match 64%	XP Power DC DC CONVERTER 3.3V 8W	JCG1212S3V3 vs JTF0824S3V3
JCG1212S2V5 Match 76%	XP Power DC DC CONVERTER 2.5V 12W	JCG1212S3V3 vs JCG1212S2V5
JTF1224S3V3 Match 100%	XP Power DC DC CONVERTER 3.3V 12W	JCG1212S3V3 vs JTF1224S3V3
JTF1524S3V3 Match 88%	XP Power DC DC CONVERTER 3.3V 15W	JCG1212S3V3 vs JTF1524S3V3
JCG1512S3V3 Match 88%	XP Power DC DC CONVERTER 3.3V 15W	JCG1212S3V3 vs JCG1512S3V3
JTF1024S3V3 Match 84%	XP Power DC DC CONVERTER 3.3V 10W	JCG1212S3V3 vs JTF1024S3V3
