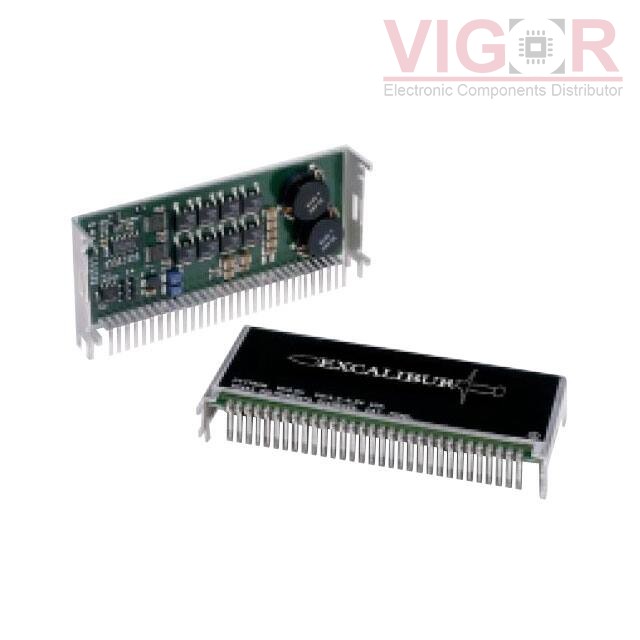

PT7769N

Part No :: PT7769N

Manufacturer: VIGOR

VIGOR # :: 4109866

Description: SWITCHING REGULATOR

Catalog: DC DC Converters

DataSheet: PT7769N PDF

Country of origin: -

Date code: -

PT7769N Specifications

Type	Description
Series:	Excalibur™ PT7761
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	1.3 ~ 3.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	40A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	31-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT8102N Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT7769N vs PT8102N
PT7761A Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT7769N vs PT7761A
PT7761N Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT7769N vs PT7761N
PT8101N Match 100%	Texas Instruments DC DC CONVERTER 1.3-2.7V	PT7769N vs PT8101N

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 403

Shipped from

HK warehouse

Expected Shipping Date

Aug 02 - Aug 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$71.5600~~	~~$71.56~~

Current price of PT7769N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
