PT7761N

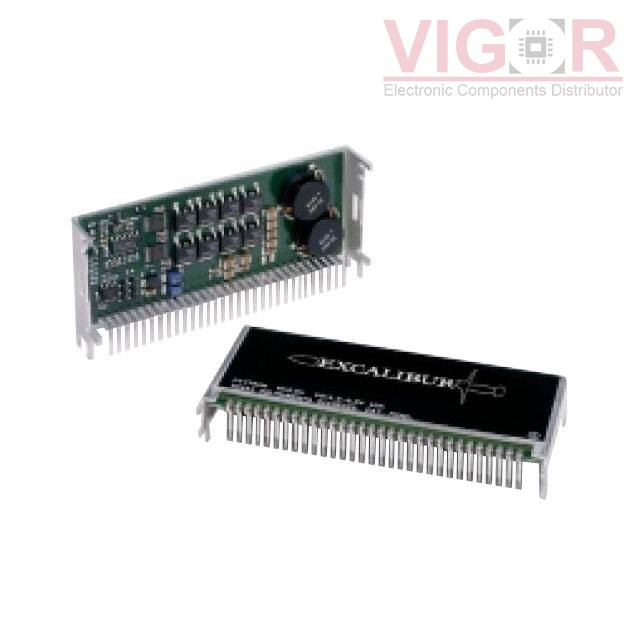

Image is for reference,
please contact us to get the real picture

Part No :

PT7761N

Manufacturer
VIGOR
Description
SWITCHING REGLTR, VOLTAGE-MODE
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Oct 04 - Oct 08 2025
DataSheet
PT7761N PDF
Availability
1128 pieces
Unit Price
$75.67000

Current price of PT7761N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Excalibur™ PT7761
Package:Tray
Part Status:Obsolete
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):4.5V
Voltage - Input (Max):5.5V
Voltage - Output 1:1.3 ~ 3.5V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):40A
Power (Watts):-
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 85°C
Efficiency:86%
Mounting Type:Through Hole
Package / Case:31-SIP Module
Size / Dimension:-
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
