AM2D-1203SH40Z

Part No :: AM2D-1203SH40Z

Manufacturer: DComponents

VIGOR # :: 4110764

Description: DC DC CONVERTER 3.3V 1.3W

Catalog: DC DC Converters

DataSheet: AM2D-1203SH40Z PDF

Country of origin: -

Date code: -

AM2D-1203SH40Z Specifications

Type	Description
Series:	AM2D-Z (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	400mA
Power (Watts):	1.3 W
Voltage - Isolation:	4 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	65%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM2D-1203SH30Z Match 83%	DComponents DC DC CONVERTER 3.3V 2W	AM2D-1203SH40Z vs AM2D-1203SH30Z
AM2DS-1203S-NZ Match 74%	DComponents DC DC CONVERTER 3.3V 2W	AM2D-1203SH40Z vs AM2DS-1203S-NZ
2S7BE_1203S3U Match 96%	TE Connectivity AMP Connectors DC-DC	AM2D-1203SH40Z vs 2S7BE_1203S3U
AM2D-1203SH52Z Match 83%	DComponents DC DC CONVERTER 3.3V 2W	AM2D-1203SH40Z vs AM2D-1203SH52Z
2S7A_1203S1UP Match 85%	TE Connectivity AMP Connectors DC-DC	AM2D-1203SH40Z vs 2S7A_1203S1UP
1S7BE_1203S3U Match 77%	TE Connectivity AMP Connectors DC-DC	AM2D-1203SH40Z vs 1S7BE_1203S3U

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 320

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.6000~~	~~$6.60~~

Current price of AM2D-1203SH40Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

RW2-4815D/SMD

DC DC CONVERTER +/-15V 2W

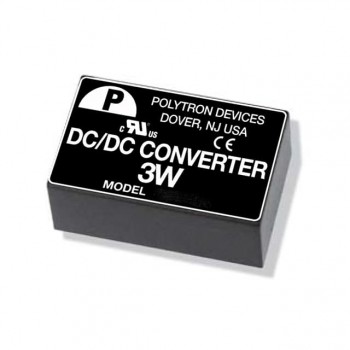

TW3-12-5
