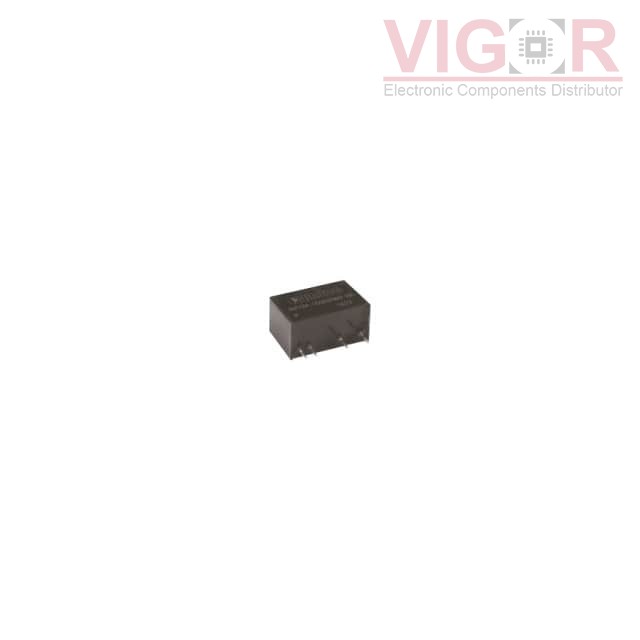

AM1DM-0515SH60-NZ

Part No :: AM1DM-0515SH60-NZ

Manufacturer: DComponents

VIGOR # :: 4111185

Description: DC DC CONVERTER 15V 1W

Catalog: DC DC Converters

DataSheet: AM1DM-0515SH60-NZ PDF

Country of origin: -

Date code: -

AM1DM-0515SH60-NZ Specifications

Type	Description
Series:	AM1DM-NZ (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	67mA
Power (Watts):	1 W
Voltage - Isolation:	6 kV
Applications:	Medical
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	76%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.39" W x 0.51" H (19.5mm x 9.8mm x 13.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1D-0515SH60Z Match 100%	DComponents DC DC CONVERTER 15V 1W	AM1DM-0515SH60-NZ vs AM1D-0515SH60Z
AM1D-0515SH40Z Match 95%	DComponents DC DC CONVERTER 15V 1W	AM1DM-0515SH60-NZ vs AM1D-0515SH40Z
PEM1-S5-S15-S Match 91%	CUI Inc. DC DC CONVERTER 15V 1W	AM1DM-0515SH60-NZ vs PEM1-S5-S15-S
1S7WB_0515S3RP Match 91%	TE Connectivity AMP Connectors DC-DC	AM1DM-0515SH60-NZ vs 1S7WB_0515S3RP
NMV0515SAC Match 91%	Murata Power Solutions DC DC CONVERTER 15V 1W	AM1DM-0515SH60-NZ vs NMV0515SAC
PEME1-S5-S15-S Match 91%	CUI Inc. DC DC CONVERTER 15V 1W	AM1DM-0515SH60-NZ vs PEME1-S5-S15-S

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1141

Shipped from

HK warehouse

Expected Shipping Date

Aug 01 - Aug 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.9600~~	~~$4.96~~

Current price of AM1DM-0515SH60-NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

RP180H-11015SRW/N

DC DC CONVERTER 15V 180W

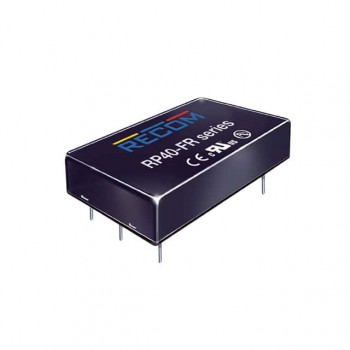

RP40-483.3SFR/N-HC
