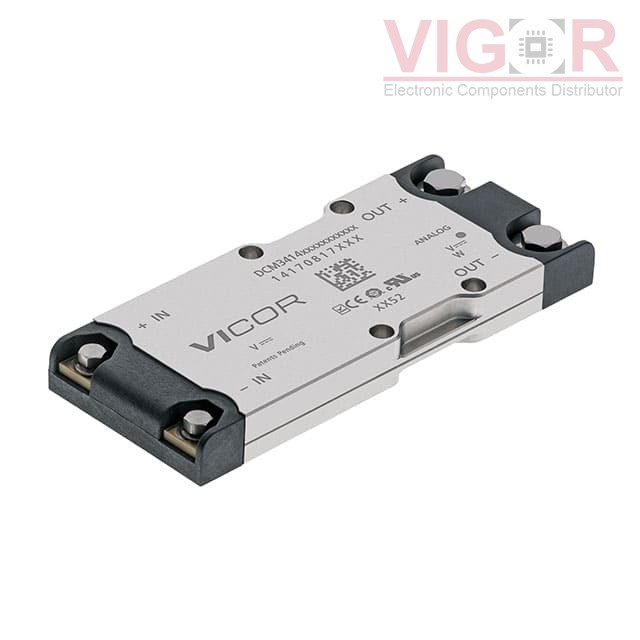

DCM3414B50M26C2C09

Part No :: DCM3414B50M26C2C09

Manufacturer: Vicor

VIGOR # :: 4112046

Description: DC DC CONVERTER 24V 320W

Catalog: DC DC Converters

DataSheet: DCM3414B50M26C2C09 PDF

Country of origin: -

Date code: -

DCM3414B50M26C2C09 Specifications

Type	Description
Series:	VI Chip® DCM® (320W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	16V
Voltage - Input (Max):	50V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	13.33A
Power (Watts):	320 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-20°C ~ 125°C
Efficiency:	90.7%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	3.47" L x 1.40" W x 0.37" H (88.1mm x 35.5mm x 9.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
DCM3414B50M26C2T09 Match 100%	Vicor DC DC CONVERTER 24V 320W	DCM3414B50M26C2C09 vs DCM3414B50M26C2T09
MDCM28AP240M320A50 Match 95%	Vicor DC DC CONVERTER 24V 320W	DCM3414B50M26C2C09 vs MDCM28AP240M320A50
DCM3414B50M26C2T05 Match 100%	Vicor DC DC CONVERTER 24V 320W	DCM3414B50M26C2C09 vs DCM3414B50M26C2T05
DCM3623T50M26C2M00 Match 94%	Vicor DC DC CONVERTER 24V 321.6W	DCM3414B50M26C2C09 vs DCM3623T50M26C2M00
DCM3623T50M26C2T00 Match 95%	Vicor DC DC CONVERTER 24V 320W	DCM3414B50M26C2C09 vs DCM3623T50M26C2T00
DCM3414B50M26C2C05 Match 100%	Vicor DC DC CONVERTER 24V 320W	DCM3414B50M26C2C09 vs DCM3414B50M26C2C05

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 96

Shipped from

HK warehouse

Expected Shipping Date

Sep 01 - Sep 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$656.9600~~	~~$656.96~~
10	~~$624.1172~~	~~$6 241.17~~

Current price of DCM3414B50M26C2C09 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
