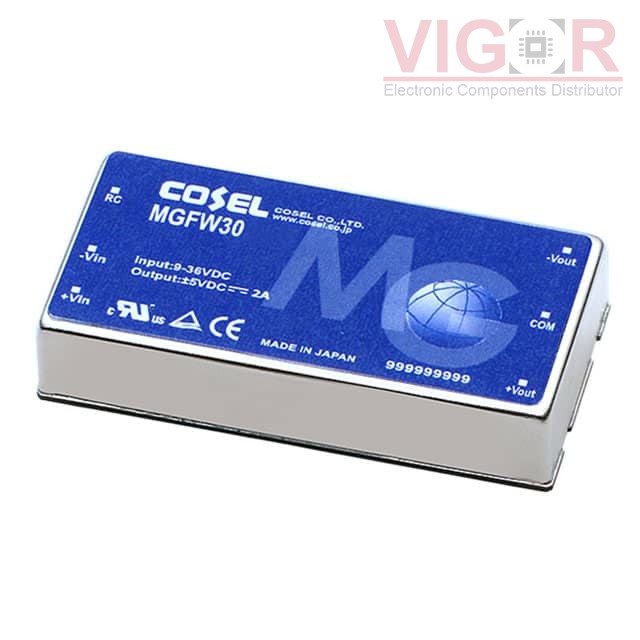

MGFW302405-R

Part No :: MGFW302405-R

Manufacturer: Cosel

VIGOR # :: 4112101

Description: DC DC CONVERTER +/-5V 10V 20W

Catalog: DC DC Converters

DataSheet: MGFW302405-R PDF

Country of origin: -

Date code: -

MGFW302405-R Specifications

Type	Description
Series:	MGFW (30W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	10V
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	85%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
RP10-2405SEW/N/M2 Match 78%	RECOM Power DC DC CONVERTER 5V 10W	MGFW302405-R vs RP10-2405SEW/N/M2
MGFS302415 Match 55%	Cosel DC DC CONVERTER 15V	MGFW302405-R vs MGFS302415
AM10OW-2405SNZ-M Match 79%	DComponents DC DC CONVERTER 5V 10W	MGFW302405-R vs AM10OW-2405SNZ-M
ERM02A18 Match 70%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 5V 10W	MGFW302405-R vs ERM02A18
RP10-2405SEW/P/M2-HC Match 78%	RECOM Power DC DC CONVERTER 5V 10W	MGFW302405-R vs RP10-2405SEW/P/M2-HC
PDQ10-Q24-S5-D Match 79%	CUI Inc. DC DC CONVERTER 5V 10W	MGFW302405-R vs PDQ10-Q24-S5-D

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 88

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$56.1400~~	~~$56.14~~

Current price of MGFW302405-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

V375A15C600B

DC DC CONVERTER 15V 600W

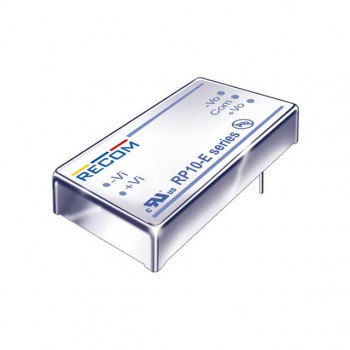

RP10-4805DE
