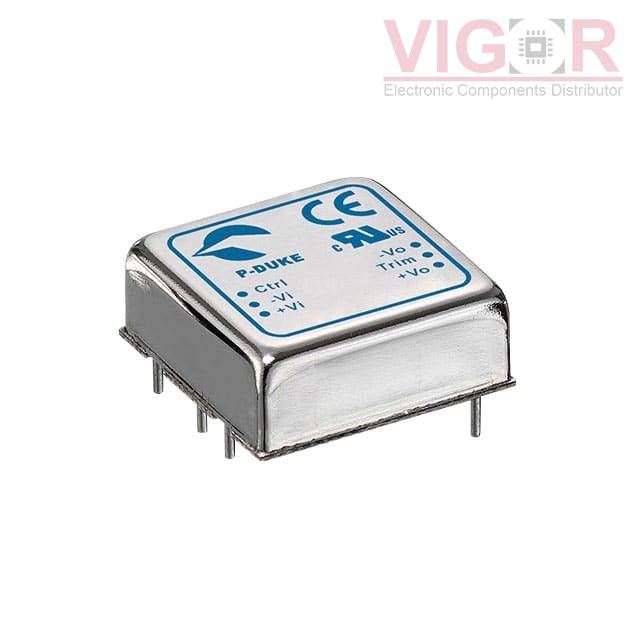

LCD20-12S15

Part No :: LCD20-12S15

Manufacturer: P-Duke Technology, Inc.

VIGOR # :: 4112136

Description: DC DC CONVERTER 15V 20W

Catalog: DC DC Converters

DataSheet: LCD20-12S15 PDF

Country of origin: -

Date code: -

LCD20-12S15 Specifications

Type	Description
Series:	LCD20 (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.33A
Power (Watts):	20 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Remote On/Off
Operating Temperature:	-40°C ~ 101°C (With Derating)
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	CB, CE, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PXD2012S15 Match 100%	TDK-Lambda, Inc. DC DC CONVERTER 15V 20W	LCD20-12S15 vs PXD2012S15
URB2415YMD-20WR3 Match 99%	Mornsun DC DC CONVERTER 15V 20W	LCD20-12S15 vs URB2415YMD-20WR3
JCM2012S15 Match 100%	XP Power DC DC CONVERTER 15V 20W	LCD20-12S15 vs JCM2012S15
FED20-24S15W Match 100%	P-Duke Technology, Inc. DC DC CONVERTER 15V 20W	LCD20-12S15 vs FED20-24S15W
JTM2024S15 Match 100%	XP Power DC DC CONVERTER 15V 20W	LCD20-12S15 vs JTM2024S15
LCD20-24S15W Match 100%	P-Duke Technology, Inc. DC DC CONVERTER 15V 20W	LCD20-12S15 vs LCD20-24S15W

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 527

Shipped from

HK warehouse

Expected Shipping Date

Oct 24 - Oct 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$38.8000~~	~~$38.80~~

Current price of LCD20-12S15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

AM6G-2424SH30Z

DC DC CONVERTER 24V 6W

MEZDPD3603A-84D3

DC DC CONVERTER

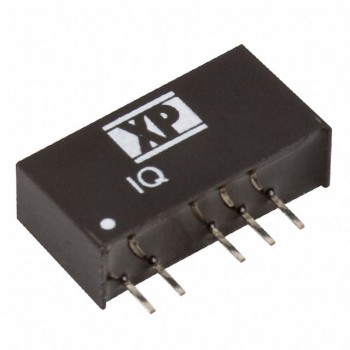

IQ4809SA
