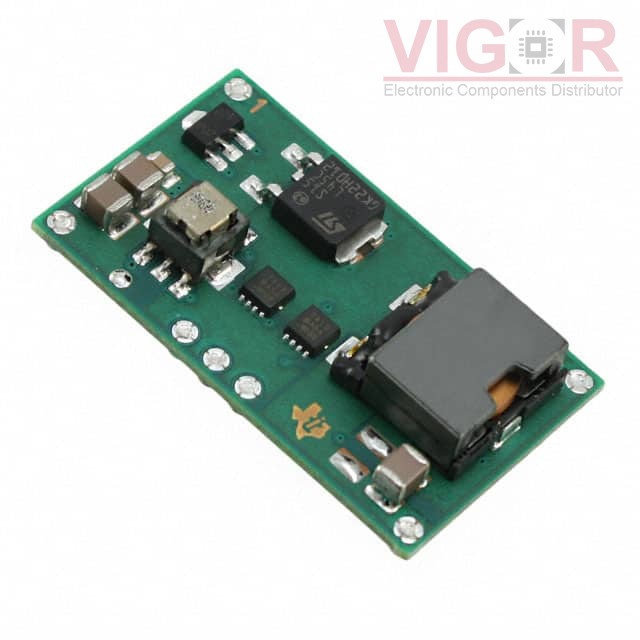

PTN78020WAZ

Part No :: PTN78020WAZ

Manufacturer: VIGOR

VIGOR # :: 4112142

Description: 6-AMP, WIDE-INPUT ADJUSTABLE SWI

Catalog: DC DC Converters

DataSheet: PTN78020WAZ PDF

Country of origin: -

Date code: -

PTN78020WAZ Specifications

Type	Description
Series:	PTN78020W
Package:	Bulk
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7V
Voltage - Input (Max):	36V
Voltage - Output 1:	2.5 ~ 12.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	94%
Mounting Type:	Surface Mount
Package / Case:	7-SMD Module
Size / Dimension:	1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
