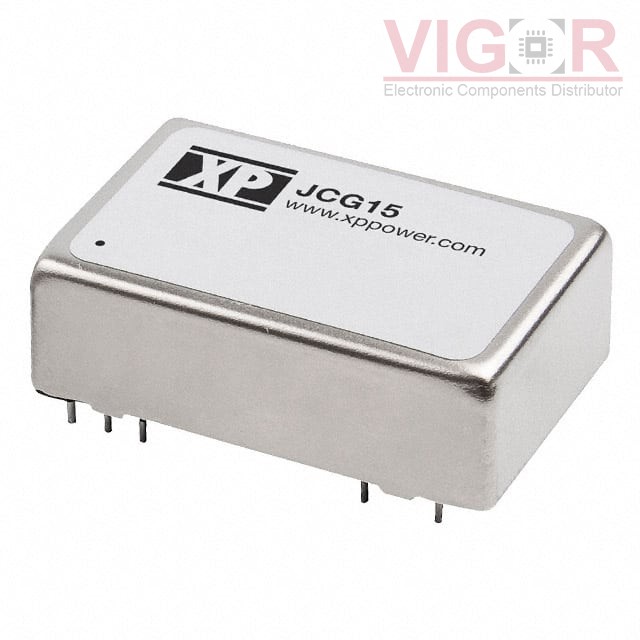

JCG1548S3V3

Part No :: JCG1548S3V3

Manufacturer: XP Power

VIGOR # :: 4112165

Description: DC DC CONVERTER 3.3V 15W

Catalog: DC DC Converters

DataSheet: JCG1548S3V3 PDF

Country of origin: -

Date code: -

JCG1548S3V3 Specifications

Type	Description
Series:	JCG (15W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	4A
Power (Watts):	15 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JTF1548S3V3 Match 100%	XP Power DC DC CONVERTER 3.3V 15W	JCG1548S3V3 vs JTF1548S3V3
JTF1548S05 Match 52%	XP Power DC DC CONVERTER 5.1V 15W	JCG1548S3V3 vs JTF1548S05
JTF1048S3V3 Match 71%	XP Power DC DC CONVERTER 3.3V 10W	JCG1548S3V3 vs JTF1048S3V3
JCG1248S3V3 Match 88%	XP Power DC DC CONVERTER 3.3V 12W	JCG1548S3V3 vs JCG1248S3V3
JCG1248S2V5 Match 63%	XP Power DC DC CONVERTER 2.5V 12W	JCG1548S3V3 vs JCG1248S2V5
JTF1248S3V3 Match 88%	XP Power DC DC CONVERTER 3.3V 12W	JCG1548S3V3 vs JTF1248S3V3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1770

Shipped from

HK warehouse

Expected Shipping Date

Oct 26 - Oct 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$28.9050~~	~~$28.90~~
10	~~$28.9050~~	~~$289.05~~

Current price of JCG1548S3V3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
