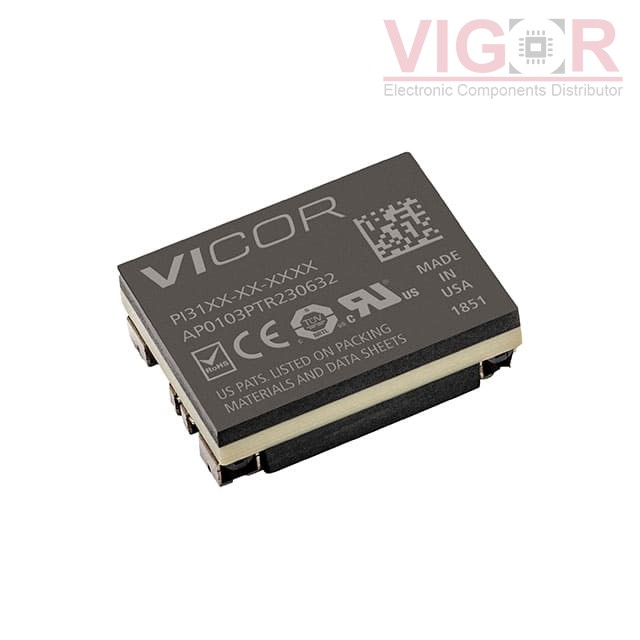

PI3109-01-HVIZ

Part No :: PI3109-01-HVIZ

Manufacturer: Vicor

VIGOR # :: 4112357

Description: DC DC CONVERTER 5V 50W

Catalog: DC DC Converters

DataSheet: PI3109-01-HVIZ PDF

Country of origin: -

Date code: -

PI3109-01-HVIZ Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Last Time Buy
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	50 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature:	-40°C ~ 125°C
Efficiency:	88%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module
Size / Dimension:	0.87" L x 0.65" W x 0.27" H (22.0mm x 16.5mm x 6.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PI3108-00-HVMZ Match 64%	Vicor DC DC CONVERTER 3.3V 50W	PI3109-01-HVIZ vs PI3108-00-HVMZ
PI3109-00-HVMZ Match 100%	Vicor DC DC CONVERTER 5V 50W	PI3109-01-HVIZ vs PI3109-00-HVMZ
