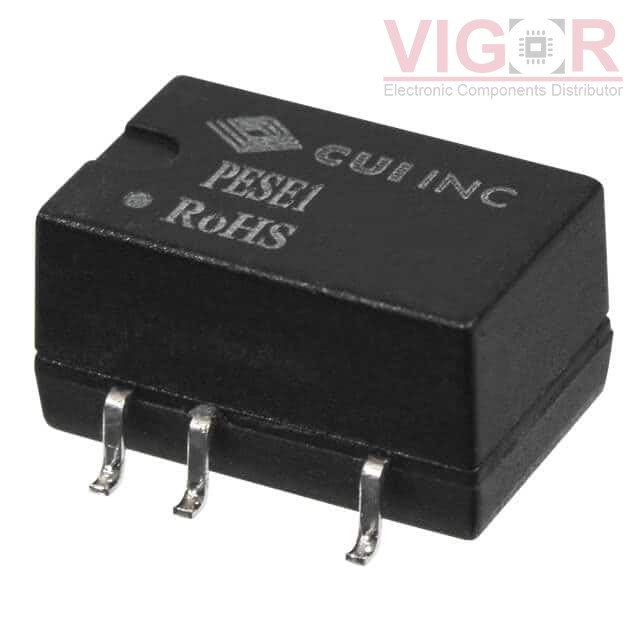

PESE1-S5-S12-M-TR

Part No :: PESE1-S5-S12-M-TR

Manufacturer: CUI Inc.

VIGOR # :: 4114648

Description: DC DC CONVERTER 12V 1W

Catalog: DC DC Converters

DataSheet: PESE1-S5-S12-M-TR PDF

Country of origin: -

Date code: -

PESE1-S5-S12-M-TR Specifications

Type	Description
Series:	PESE1-M (1W)
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	84mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	83%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module, 5 Leads
Size / Dimension:	0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
F0512XT-1WR3-TR Match 100%	Mornsun DC DC CONVERTER 12V 1W	PESE1-S5-S12-M-TR vs F0512XT-1WR3-TR
AM1LS-0512SH30-NZTR Match 100%	DComponents DC DC CONVERTER 12V 1W	PESE1-S5-S12-M-TR vs AM1LS-0512SH30-NZTR
PESE1-S5-S12-M Match 100%	CUI Inc. DC DC CONVERTER 12V 1W	PESE1-S5-S12-M-TR vs PESE1-S5-S12-M
AM1LS-0512SJZTR Match 91%	DComponents DC DC CONVERTER 12V 1W	PESE1-S5-S12-M-TR vs AM1LS-0512SJZTR
PES1-S5-S12-M-TR Match 100%	CUI Inc. DC DC CONVERTER 12V 1W	PESE1-S5-S12-M-TR vs PES1-S5-S12-M-TR
F0512XT-1WR3 Match 100%	Mornsun DC DC CONVERTER 12V 1W	PESE1-S5-S12-M-TR vs F0512XT-1WR3
