JHM1512D05

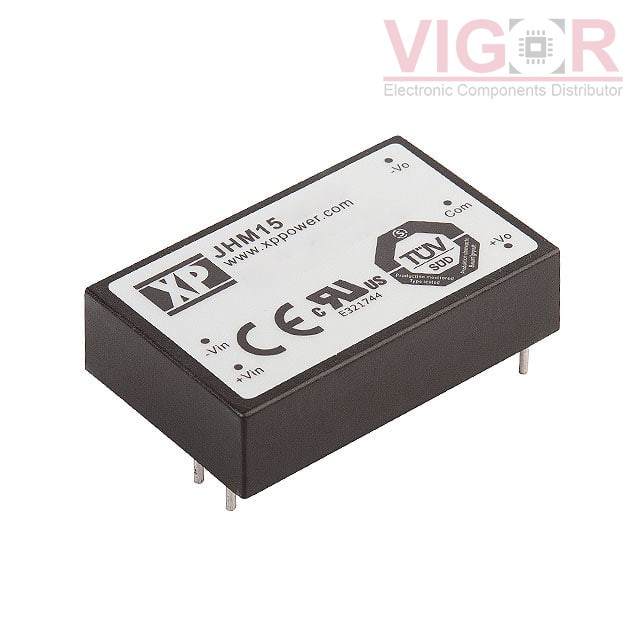

Image is for reference,
please contact us to get the real picture

Part No :: JHM1512D05

Manufacturer: XP Power

Description: DC DC CONVERTER +/-5V 15W

Catalog: DC DC Converters

DataSheet: JHM1512D05 PDF

Availability: 1671 pieces

Unit Price: ~~$54.00000~~

Current price of JHM1512D05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JHM1512D05 Specifications

Type	Description
Series:	JHM (15W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A, 1.5A
Power (Watts):	15 W
Voltage - Isolation:	4 kV
Applications:	Medical
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 80°C
Efficiency:	84%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
