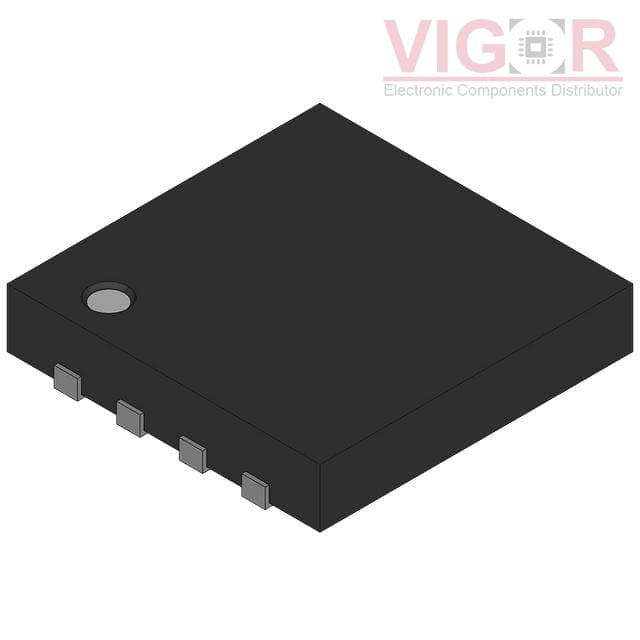

LMZ10500SEX/NOPB

Part No :: LMZ10500SEX/NOPB

Manufacturer: VIGOR

VIGOR # :: 4116890

Description: SWITCHING REGULATOR

Catalog: DC DC Converters

DataSheet: LMZ10500SEX/NOPB PDF

Country of origin: Confirming

Date code: TBC

LMZ10500SEX/NOPB Specifications

Type	Description
Series:	SIMPLE SWITCHER®
Package:	Bulk
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	2.7V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.6 ~ 3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	650mA
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-
Efficiency:	95%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module
Size / Dimension:	0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
XCL223A333D2-G Match 89%	Torex Semiconductor Ltd. DC DC CONVERTER 3.3V	LMZ10500SEX/NOPB vs XCL223A333D2-G
XCL224A183D2-G Match 89%	Torex Semiconductor Ltd. DC DC CONVERTER 1.8V	LMZ10500SEX/NOPB vs XCL224A183D2-G
XCL224A333D2-G Match 89%	Torex Semiconductor Ltd. DC DC CONVERTER 3.3V	LMZ10500SEX/NOPB vs XCL224A333D2-G
XCL223A183D2-G Match 89%	Torex Semiconductor Ltd. DC DC CONVERTER 1.8V	LMZ10500SEX/NOPB vs XCL223A183D2-G
XCL223A123D2-G Match 89%	Torex Semiconductor Ltd. DC DC CONVERTER 1.2V	LMZ10500SEX/NOPB vs XCL223A123D2-G
XCL224A123D2-G Match 89%	Torex Semiconductor Ltd. DC DC CONVERTER 1.2V	LMZ10500SEX/NOPB vs XCL224A123D2-G
