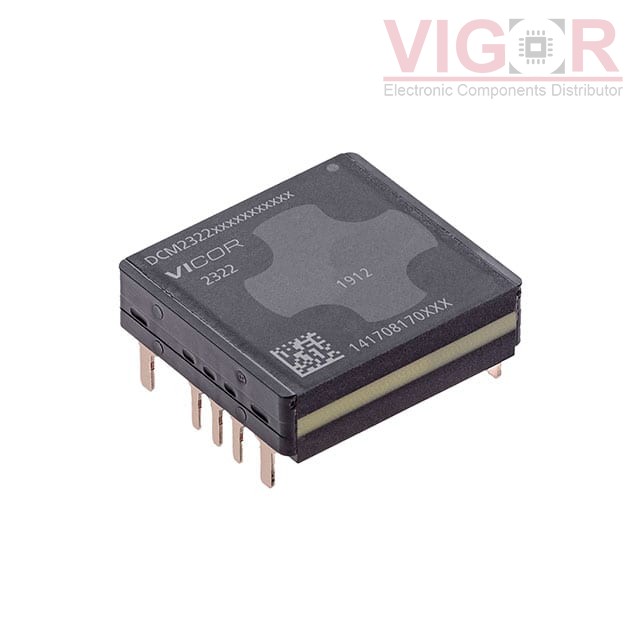

DCM2322T72S13A0M60 – Vicor 100W Isolated Module

Part No :: DCM2322T72S13A0M60

Manufacturer: Vicor

VIGOR # :: 4116954

Description: DC DC CONVERTER 12V 100W

Catalog: DC DC Converters

DataSheet: DCM2322T72S13A0M60 PDF

Country of origin: -

Date code: -

Product Description

The DCM2322T72S13A0M60 from Vicor is a 100W isolated module in the VI Chip® DCM® family.

It converts a 14V–72V input into a regulated 12V output, delivering up to 8.33A of output current.

Review the complete DCM2322T72S13A0M60 specifications below, or request a quote for current stock and lead-time pricing.

DCM2322T72S13A0M60 Specifications

Type	Description
Series:	VI Chip® DCM®
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	14V
Voltage - Input (Max):	72V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8.33A
Power (Watts):	100 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output
Operating Temperature:	-55°C ~ 125°C
Efficiency:	93%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cTUVus, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
DCM3623T75X1380M00 Match 80%	Vicor DC DC CONVERTER 12V 80W	DCM2322T72S13A0M60 vs DCM3623T75X1380M00
DCM2322T72S17A0M60 Match 71%	Vicor DC DC CONVERTER 15V 100W	DCM2322T72S13A0M60 vs DCM2322T72S17A0M60
DCM3623T75X1780M70 Match 52%	Vicor DC DC CONVERTER 15V 81W	DCM2322T72S13A0M60 vs DCM3623T75X1780M70
DCM3623T75X1780M00 Match 52%	Vicor DC DC CONVERTER 15V 81W	DCM2322T72S13A0M60 vs DCM3623T75X1780M00
