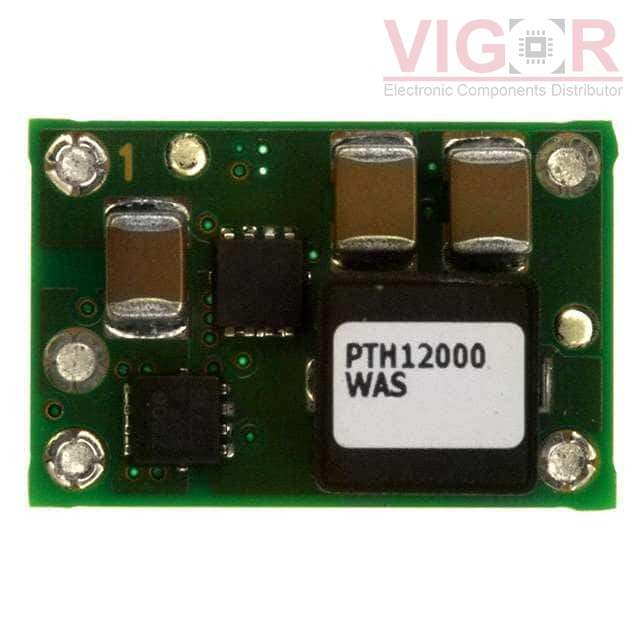

PTH12000WAST

Part No :: PTH12000WAST

Manufacturer: VIGOR

VIGOR # :: 4118948

Description: DC-DC POWER SUPPLY MODULE

Catalog: DC DC Converters

DataSheet: PTH12000WAST PDF

Country of origin: -

Date code: -

PTH12000WAST Specifications

Type	Description
Series:	PTH12000
Package:	Bulk
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	1.2 ~ 5.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	92%
Mounting Type:	Surface Mount
Package / Case:	5-SMD Module
Size / Dimension:	0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AMSRL6-PNZTR Match 100%	DComponents DC DC CONVERTER 0.75-5V	PTH12000WAST vs AMSRL6-PNZTR
PTH12000WAZT Match 100%	VIGOR PTH12000W 12V INPUT, 6A STEP-DOW	PTH12000WAST vs PTH12000WAZT
PTH12000WAS Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V	PTH12000WAST vs PTH12000WAS
PTH12000LAZT Match 100%	Texas Instruments DC DC CONVERTER 0.8-1.8V	PTH12000WAST vs PTH12000LAZT
TOS 06-12SM Match 100%	TRACO Power DC DC CONVERTER 0.75-5V 30W	PTH12000WAST vs TOS 06-12SM
PTH12000LAZ Match 100%	Texas Instruments DC DC CONVERTER 0.8-1.8V	PTH12000WAST vs PTH12000LAZ

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 124

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$8.1000~~	~~$8.10~~
250	~~$8.1000~~	~~$2 025.00~~

Current price of PTH12000WAST is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
