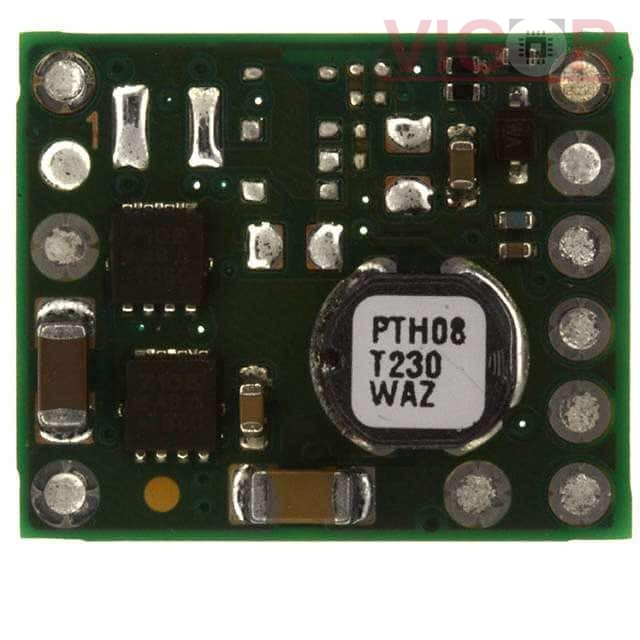

PTH08T230WAZ

Part No :: PTH08T230WAZ

Manufacturer: Texas Instruments

VIGOR # :: 4119099

Description: DC DC CONVERTER 0.69-5.5V

Catalog: DC DC Converters

DataSheet: PTH08T230WAZ PDF

Country of origin: -

Date code: -

PTH08T230WAZ Specifications

Type	Description
Series:	PTH08T230W
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	14V
Voltage - Output 1:	0.69 ~ 5.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	95%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module
Size / Dimension:	0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
ICG12006A007V-003-R Match 100%	TDK-Lambda, Inc. DC DC CONVERTER 0.7-5.5V 33W	PTH08T230WAZ vs ICG12006A007V-003-R
ICG12006A007V007R Match 100%	TDK-Lambda, Inc. DC DC CONVERTER 0.7-5.5V 33W	PTH08T230WAZ vs ICG12006A007V007R
ICG12006A007V-006-R Match 100%	TDK-Lambda, Inc. DC DC CONVERTER 0.7-5.5V 33W	PTH08T230WAZ vs ICG12006A007V-006-R
PTH08T231WAZ Match 100%	Texas Instruments DC DC CONVERTER 0.69-5.5V	PTH08T230WAZ vs PTH08T231WAZ
PTH08T230WAS Match 100%	Texas Instruments DC DC CONVERTER 0.69-5.5V	PTH08T230WAZ vs PTH08T230WAS
PTH08T231WAS Match 100%	Texas Instruments DC DC CONVERTER 0.69-5.5V	PTH08T230WAZ vs PTH08T231WAS

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 679

Shipped from

HK warehouse

Expected Shipping Date

Oct 21 - Oct 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$14.6300~~	~~$14.63~~
10	~~$14.4081~~	~~$144.08~~
36	~~$14.1862~~	~~$510.70~~
108	~~$12.4129~~	~~$1 340.59~~
504	~~$11.9696~~	~~$6 032.65~~

Current price of PTH08T230WAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
