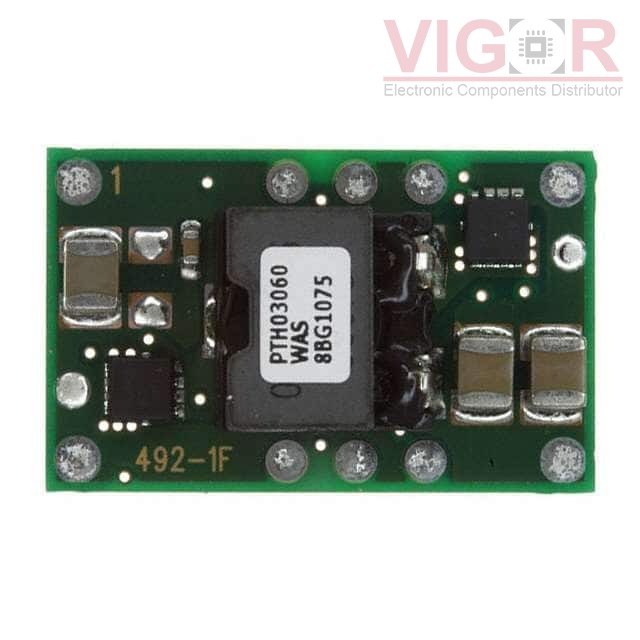

PTH03060WAS

Part No :: PTH03060WAS

Manufacturer: VIGOR

VIGOR # :: 4120114

Description: PTH03060W 10 A, 3.3-V INPUT NON-

Catalog: DC DC Converters

DataSheet: PTH03060WAS PDF

Country of origin: -

Date code: -

PTH03060WAS Specifications

Type	Description
Series:	PTH03060W (25W)
Package:	Bulk
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	2.95V
Voltage - Input (Max):	3.65V
Voltage - Output 1:	0.8 ~ 2.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	25 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	93%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module
Size / Dimension:	1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
IBF05012A006V-007-R Match 74%	TDK-Lambda, Inc. DC DC CONVERTER 0.6-3.63V	PTH03060WAS vs IBF05012A006V-007-R
PTH03060YAST Match 100%	VIGOR PTH03060Y 10 A 3.3-V INPUT BUS T	PTH03060WAS vs PTH03060YAST
PTH03060WAZT Match 100%	VIGOR PTH03060W 10 A, 3.3-V INPUT NON-	PTH03060WAS vs PTH03060WAZT
PTH03060WAZ Match 100%	Texas Instruments DC DC CONVERTER 0.8-2.5V 25W	PTH03060WAS vs PTH03060WAZ
PTH03060WAST Match 100%	Texas Instruments DC DC CONVERTER 0.8-2.5V 25W	PTH03060WAS vs PTH03060WAST
PMF4218TSR Match 100%	Flex Power Modules DC DC CONVERTER 0.8-2.5V 25W	PTH03060WAS vs PMF4218TSR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 352

Shipped from

HK warehouse

Expected Shipping Date

Jul 24 - Jul 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$13.7800~~	~~$13.78~~
10	~~$13.5664~~	~~$135.66~~
36	~~$13.3549~~	~~$480.78~~
108	~~$11.6589~~	~~$1 259.16~~
504	~~$11.2774~~	~~$5 683.80~~

Current price of PTH03060WAS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
