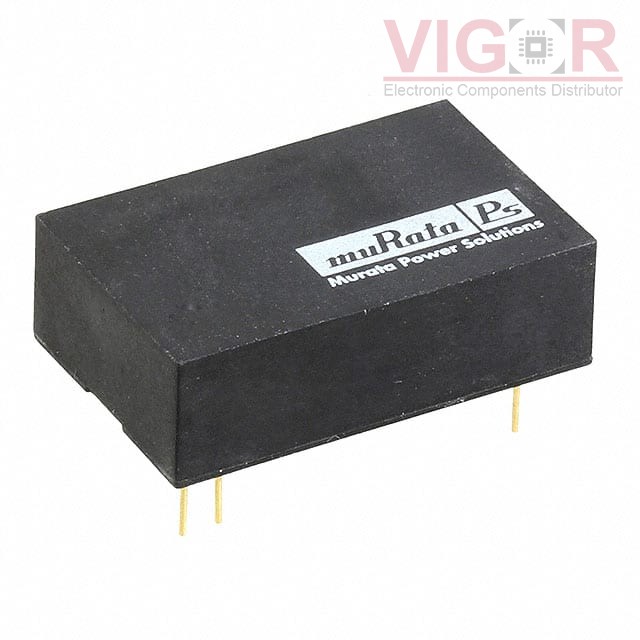

NCM6S0505EC

Part No :: NCM6S0505EC

Manufacturer: Murata Power Solutions

VIGOR # :: 4120755

Description: DC DC CONVERTER 5V 6W

Catalog: DC DC Converters

DataSheet: NCM6S0505EC PDF

Country of origin: -

Date code: -

NCM6S0505EC Specifications

Type	Description
Series:	NCM6 (6W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.2A
Power (Watts):	6 W
Voltage - Isolation:	5.2 kV
Applications:	ITE (Commercial), Medical
Features:	Remote On/Off, OTP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	80%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 7 Leads
Size / Dimension:	1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM5T-0505SZ Match 73%	DComponents DC DC CONVERTER 5V 5W	NCM6S0505EC vs AM5T-0505SZ
JCD0605S05 Match 86%	XP Power DC DC CONVERTER 5V 6W	NCM6S0505EC vs JCD0605S05
JCD0505S05 Match 73%	XP Power DC DC CONVERTER 5V 5W	NCM6S0505EC vs JCD0505S05
JCA0605S05 Match 78%	XP Power DC DC CONVERTER 5V 6W	NCM6S0505EC vs JCA0605S05
AM5T-0505SH35Z Match 82%	DComponents DC DC CONVERTER 5V 5W	NCM6S0505EC vs AM5T-0505SH35Z
AM4T-0505SH35Z Match 66%	DComponents DC DC CONVERTER 5V 4W	NCM6S0505EC vs AM4T-0505SH35Z

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 371

Shipped from

HK warehouse

Expected Shipping Date

Oct 30 - Nov 03 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$27.0700~~	~~$27.07~~
5	~~$26.9300~~	~~$134.65~~
10	~~$26.7500~~	~~$267.50~~
25	~~$26.4500~~	~~$661.25~~
50	~~$25.8000~~	~~$1 290.00~~
100	~~$24.5002~~	~~$2 450.02~~
250	~~$22.9301~~	~~$5 732.52~~

Current price of NCM6S0505EC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
