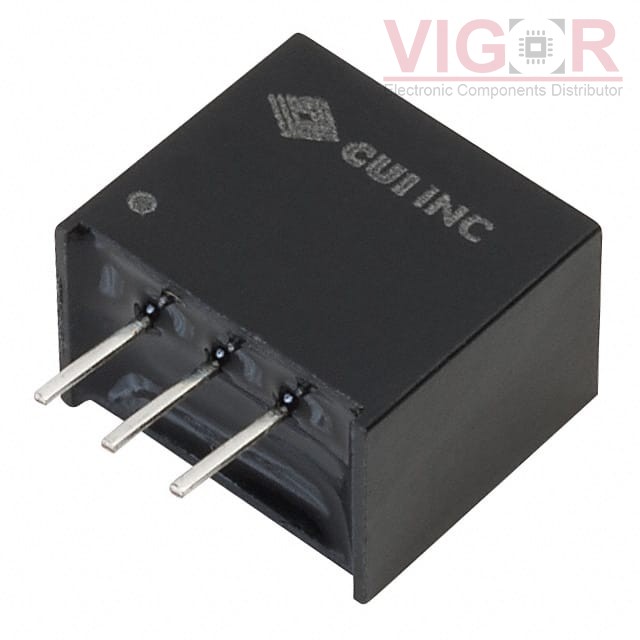

P7805-Q24-S12-S

Part No :: P7805-Q24-S12-S

Manufacturer: CUI Inc.

VIGOR # :: 4121035

Description: DC DC CONVERTER 12V 6W

Catalog: DC DC Converters

DataSheet: P7805-Q24-S12-S PDF

Country of origin: -

Date code: -

P7805-Q24-S12-S Specifications

Type	Description
Series:	P7805-S
Package:	Tube
Part Status:	Active
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	15V
Voltage - Input (Max):	32V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	6 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	95%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	EN
Standard Number:	55024; 55032 Class A

Alternative Products

Part Number	Manufacturer & Description	Compare
PM05S120A Match 100%	Delta Electronics / Power DC DC CONVERTER 12V 6W	P7805-Q24-S12-S vs PM05S120A
VX78012-500 Match 100%	CUI Inc. DC DC CONVERTER 12V 6W	P7805-Q24-S12-S vs VX78012-500
PM-500A120 Match 100%	Volgen (Kaga Electronics USA) DC DC CONVERTER 12V	P7805-Q24-S12-S vs PM-500A120
V7812-500 Match 100%	CUI Inc. DC DC CONVERTER 12V 6W	P7805-Q24-S12-S vs V7812-500
R-7812-0.5 Match 100%	RECOM Power DC DC CONVERTER 12V 6W	P7805-Q24-S12-S vs R-7812-0.5
TSR 0.5-24120 Match 100%	TRACO Power DC DC CONVERTER 12V 6W	P7805-Q24-S12-S vs TSR 0.5-24120

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 2861

Shipped from

HK warehouse

Expected Shipping Date

Aug 28 - Sep 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.9400~~	~~$4.94~~
5	~~$4.8640~~	~~$24.32~~
10	~~$4.7940~~	~~$47.94~~
43	~~$4.6530~~	~~$200.08~~
86	~~$4.5120~~	~~$388.03~~
129	~~$4.3710~~	~~$563.86~~
258	~~$4.2300~~	~~$1 091.34~~
516	~~$3.9480~~	~~$2 037.17~~

Current price of P7805-Q24-S12-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
