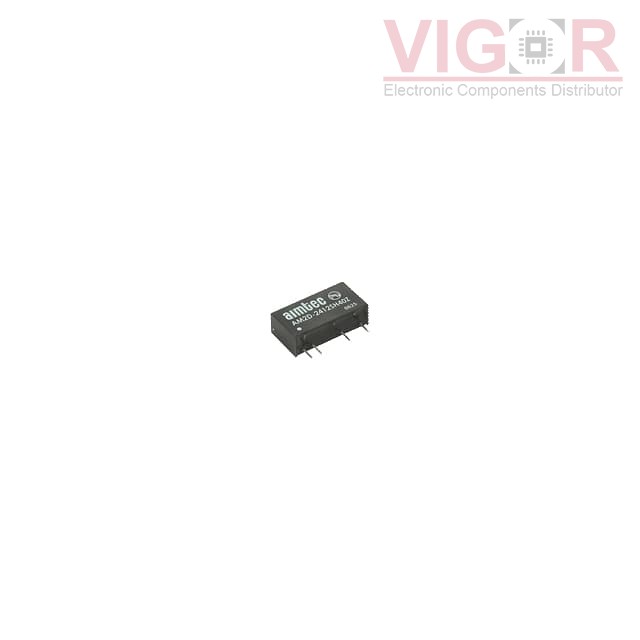

AM2D-0524SH40Z

Part No :: AM2D-0524SH40Z

Manufacturer: DComponents

VIGOR # :: 4121175

Description: DC DC CONVERTER 24V 2W

Catalog: DC DC Converters

DataSheet: AM2D-0524SH40Z PDF

Country of origin: -

Date code: -

AM2D-0524SH40Z Specifications

Type	Description
Series:	AM2D-Z (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	83mA
Power (Watts):	2 W
Voltage - Isolation:	4 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM2D-0524SH60Z Match 95%	DComponents DC DC CONVERTER 24V 2W	AM2D-0524SH40Z vs AM2D-0524SH60Z
AM2DS-0524SH30-NZ Match 96%	DComponents DC DC CONVERTER 24V 2W	AM2D-0524SH40Z vs AM2DS-0524SH30-NZ
PEM2-S5-S24-S Match 96%	CUI Inc. DC DC CONVERTER 24V 2W	AM2D-0524SH40Z vs PEM2-S5-S24-S
2S7BE_0524S3U Match 96%	TE Connectivity AMP Connectors DC-DC	AM2D-0524SH40Z vs 2S7BE_0524S3U
AM2D-0524SH52Z Match 97%	DComponents DC DC CONVERTER 24V 2W	AM2D-0524SH40Z vs AM2D-0524SH52Z
AM2D-0524SH30Z Match 96%	DComponents DC DC CONVERTER 24V 2W	AM2D-0524SH40Z vs AM2D-0524SH30Z

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 488

Shipped from

HK warehouse

Expected Shipping Date

Sep 04 - Sep 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.4100~~	~~$7.41~~

Current price of AM2D-0524SH40Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
