PQMC1-D12-D15-S

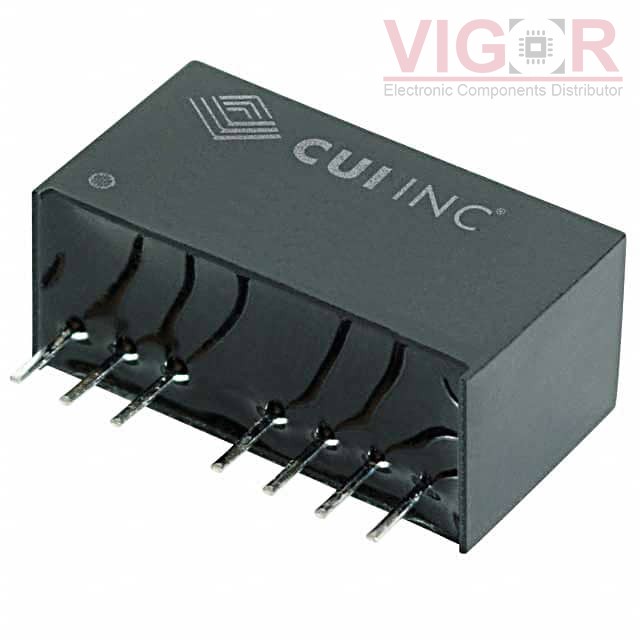

Product image
Product thumb
Part No :

PQMC1-D12-D15-S

Manufacturer
CUI Inc.
VIGOR # :

4121249

Description
DC DC CONVERTER +/-15V 1W
Catalog
DC DC Converters
DataSheet
PQMC1-D12-D15-S PDF
Country of origin
-
Date code
-
ads
PQMC1-D12-D15-S Specifications
Type Description
Series:PQMC1-S (1W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):9V
Voltage - Input (Max):18V
Voltage - Output 1:15V
Voltage - Output 2:-15V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):33mA, 33mA
Power (Watts):1 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:OCP, SCP
Operating Temperature:-40°C ~ 105°C
Efficiency:80%
Mounting Type:Through Hole
Package / Case:8-SIP Module, 7 Leads
Size / Dimension:0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package:-
Control Features:Enable, Active Low
Approval Agency:EN
Standard Number:55024; 55032 Class A
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 781
Shipped from
HK warehouse
Expected Shipping Date
Jun 04 - Jun 08 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $11.0100 $11.01
5 $10.9220 $54.61
10 $10.8390 $108.39
30 $10.6720 $320.16
50 $10.3386 $516.93
100 $9.3380 $933.80
250 $9.1712 $2 292.81
500 $9.0045 $4 502.25

Current price of PQMC1-D12-D15-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
