PT7715C

Part No :: PT7715C

Manufacturer: VIGOR

VIGOR # :: 4122115

Description: SWITCHING REGULATOR

Catalog: DC DC Converters

DataSheet: PT7715C PDF

Country of origin: -

Date code: -

PT7715C Specifications

Type	Description
Series:	Excalibur™ PT7715
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	1.075 ~ 1.85V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	82%
Mounting Type:	Surface Mount
Package / Case:	27-SMD Module
Size / Dimension:	3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT7711C Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT7715C vs PT7711C
PT7709C Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT7715C vs PT7709C
PT7749C Match 85%	Texas Instruments DC DC CONVERTER 1.3-3.5V	PT7715C vs PT7749C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 510

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$58.6700~~	~~$58.67~~

Current price of PT7715C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

V24B3V3M150BN

DC DC CONVERTER 3.3V 150W

VI-J11-CZ-F2

DC DC CONVERTER 12V 25W

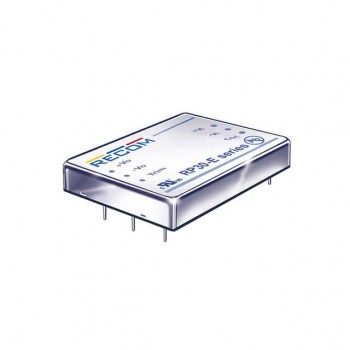

RP30-1215DE
