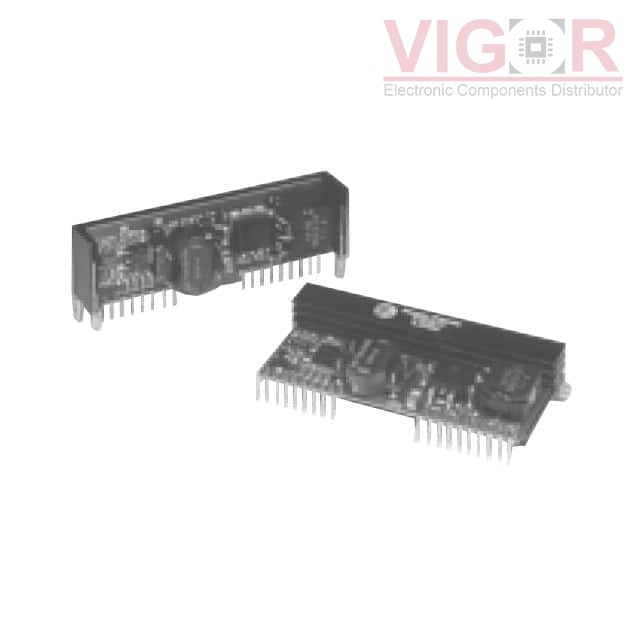

PT3322A

Part No :: PT3322A

Manufacturer: VIGOR

VIGOR # :: 4123269

Description: DC-DC POWER SUPPLY MODULE

Catalog: DC DC Converters

DataSheet: PT3322A PDF

Country of origin: -

Date code: -

PT3322A Specifications

Type	Description
Series:	PT3320 (30W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	30 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	84%
Mounting Type:	Through Hole, Right Angle
Package / Case:	19-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT4561A Match 52%	VIGOR DC-DC POWER SUPPLY MODULE	PT3322A vs PT4561A
PT3321A Match 52%	Texas Instruments DC DC CONVERTER 3.3V 30W	PT3322A vs PT3321A
PT4566A Match 52%	Texas Instruments DC DC CONVERTER 2.5V 30W	PT3322A vs PT4566A
PT4562A Match 100%	Texas Instruments DC DC CONVERTER 5V 30W	PT3322A vs PT4562A
PT4565A Match 52%	Texas Instruments DC DC CONVERTER 2V 30W	PT3322A vs PT4565A
PT4567A Match 52%	Texas Instruments DC DC CONVERTER 1.8V 30W	PT3322A vs PT4567A

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1647

Shipped from

HK warehouse

Expected Shipping Date

Sep 03 - Sep 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$54.1400~~	~~$54.14~~

Current price of PT3322A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
