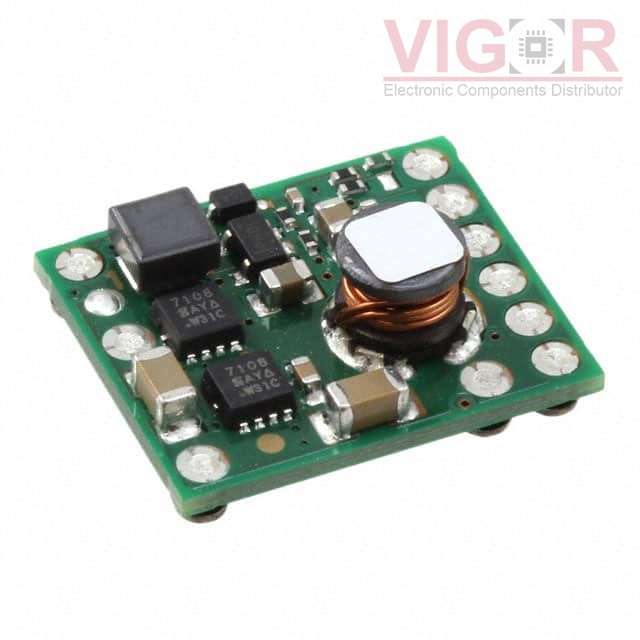

PTH04T260WAS

Part No :: PTH04T260WAS

Manufacturer: VIGOR

VIGOR # :: 4123461

Description: DC-DC REGULATED POWER SUPPLY MOD

Catalog: DC DC Converters

DataSheet: PTH04T260WAS PDF

Country of origin: -

Date code: -

PTH04T260WAS Specifications

Type	Description
Series:	PTH04T260W
Package:	Bulk
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	2.2V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.69 ~ 3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	95%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module
Size / Dimension:	0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH04T261WAS Match 100%	VIGOR DC-DC POWER SUPPLY MODULE	PTH04T260WAS vs PTH04T261WAS
PTH04T261WAZ Match 100%	VIGOR PTH04T261W 3-A, 2.2V TO 5.5V INP	PTH04T260WAS vs PTH04T261WAZ
PTH04T260WAZ Match 100%	VIGOR 3-A, 2.2V TO 5.5V INPUT, NON-ISO	PTH04T260WAS vs PTH04T260WAZ
PTH04T261WAST Match 100%	Texas Instruments DC DC CONVERTER 0.69-3.6V	PTH04T260WAS vs PTH04T261WAST
PTH04T260WAZT Match 100%	VIGOR PTH04T260W 3-A, 2.2V TO 5.5V INP	PTH04T260WAS vs PTH04T260WAZT
PTH04T260WAST Match 100%	Texas Instruments DC DC CONVERTER 0.69-3.6V	PTH04T260WAS vs PTH04T260WAST

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 108

Shipped from

HK warehouse

Expected Shipping Date

Sep 04 - Sep 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$9.3300~~	~~$9.33~~
10	~~$9.1877~~	~~$91.88~~
36	~~$9.0464~~	~~$325.67~~
108	~~$7.9157~~	~~$854.89~~
504	~~$7.6329~~	~~$3 847.00~~

Current price of PTH04T260WAS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
