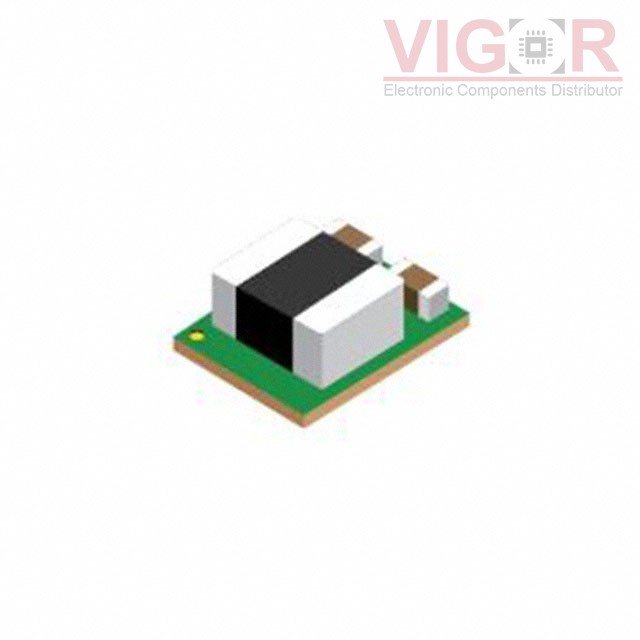

LMZM23600SILT

Part No :: LMZM23600SILT

Manufacturer: Texas Instruments

VIGOR # :: 4123673

Description: DC DC CONVERTER 1.2-15V

Catalog: DC DC Converters

DataSheet: LMZM23600SILT PDF

Country of origin: -

Date code: -

LMZM23600SILT Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4V
Voltage - Input (Max):	36V
Voltage - Output 1:	1.2 ~ 15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, SCP, UVLO
Operating Temperature:	-40°C ~ 125°C
Efficiency:	-
Mounting Type:	Surface Mount
Package / Case:	10-LDFN Exposed Pad, Module
Size / Dimension:	0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm)
Supplier Device Package:	10-uSIP (3.8x3)
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
LMZM23600V5SILR Match 100%	Texas Instruments DC DC CONVERTER 5V	LMZM23600SILT vs LMZM23600V5SILR
LMZM23600V3SILR Match 100%	Texas Instruments DC DC CONVERTER 3.3V	LMZM23600SILT vs LMZM23600V3SILR
LMZM23600V3SILT Match 100%	Texas Instruments DC DC CONVERTER 3.3V	LMZM23600SILT vs LMZM23600V3SILT
LMZM23600SILR Match 100%	Texas Instruments DC DC CONVERTER 1.2-15V	LMZM23600SILT vs LMZM23600SILR
LMZM23600V5SILT Match 100%	Texas Instruments DC DC CONVERTER 5V	LMZM23600SILT vs LMZM23600V5SILT

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1586

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.4000~~	~~$5.40~~
250	~~$3.6519~~	~~$912.98~~
500	~~$3.2768~~	~~$1 638.42~~
1250	~~$2.7636~~	~~$3 454.50~~

Current price of LMZM23600SILT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
