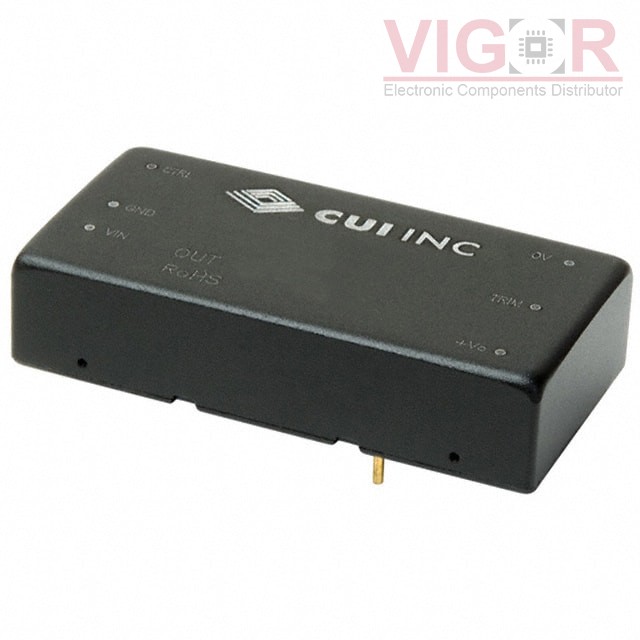

PYB20-Q24-S24

Part No :: PYB20-Q24-S24

Manufacturer: CUI Inc.

VIGOR # :: 4123960

Description: DC DC CONVERTER 24V 20W

Catalog: DC DC Converters

DataSheet: PYB20-Q24-S24 PDF

Country of origin: -

Date code: -

PYB20-Q24-S24 Specifications

Type	Description
Series:	PYB20 (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	834mA
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	EN
Standard Number:	55024

Alternative Products

Part Number	Manufacturer & Description	Compare
PDQE20-Q24-S24-D Match 100%	CUI Inc. DC DC CONVERTER 24V 20W	PYB20-Q24-S24 vs PDQE20-Q24-S24-D
AM20EW-2424S-NZ Match 100%	DComponents DC DC CONVERTER 24V 20W	PYB20-Q24-S24 vs AM20EW-2424S-NZ
AM20EW-2424S-NZ-K Match 100%	DComponents DC DC CONVERTER 24V 20W	PYB20-Q24-S24 vs AM20EW-2424S-NZ-K
PYBE20-Q24-S24 Match 100%	CUI Inc. DC DC CONVERTER 24V 20W	PYB20-Q24-S24 vs PYBE20-Q24-S24
AXA00H18-L Match 100%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 24V 20W	PYB20-Q24-S24 vs AXA00H18-L
URB2424YMD-20WR3 Match 100%	Mornsun DC DC CONVERTER 24V 20W	PYB20-Q24-S24 vs URB2424YMD-20WR3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 791

Shipped from

HK warehouse

Expected Shipping Date

Sep 04 - Sep 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$33.8500~~	~~$33.85~~
5	~~$33.5880~~	~~$167.94~~
19	~~$33.3279~~	~~$633.23~~
38	~~$32.8074~~	~~$1 246.68~~
57	~~$31.2451~~	~~$1 780.97~~
114	~~$28.6412~~	~~$3 265.10~~
266	~~$28.1205~~	~~$7 480.05~~

Current price of PYB20-Q24-S24 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
