BTD05-12S80D

Part No :: BTD05-12S80D

Manufacturer: Bellnix Co., LTD.

VIGOR # :: 4123996

Description: DC DC CONVERTER 12V 9.6W

Catalog: DC DC Converters

DataSheet: BTD05-12S80D PDF

Country of origin: -

Date code: -

BTD05-12S80D Specifications

Type	Description
Series:	BTD (10W)
Package:	Bulk
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	800mA
Power (Watts):	9.6 W
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	Adjustable Output, Remote On/Off
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	84%
Mounting Type:	Through Hole
Package / Case:	Module
Size / Dimension:	1.41" L x 0.89" W x 0.33" H (35.9mm x 22.6mm x 8.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
BTC05-12S50D Match 66%	Bellnix Co., LTD. DC DC CONVERTER 12V 6W	BTD05-12S80D vs BTC05-12S50D

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 789

Shipped from

HK warehouse

Expected Shipping Date

Sep 13 - Sep 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$35.6900~~	~~$35.69~~

Current price of BTD05-12S80D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

RK-1505S/HP

DC DC CONVERTER 5V 1W

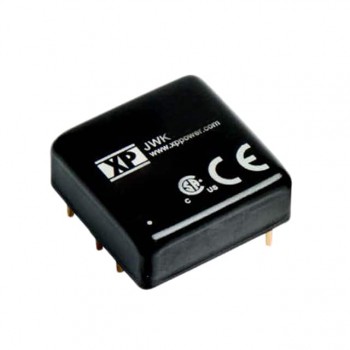

JWK2524S3V3
