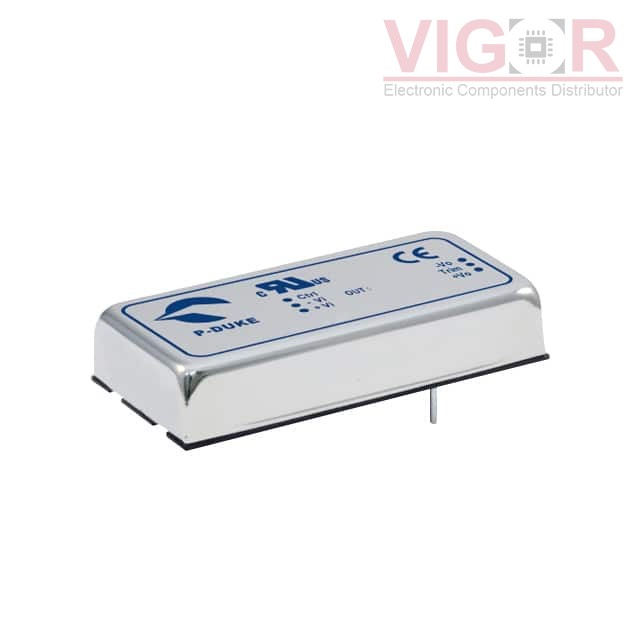

RED20-24D15W

Image is for reference,
please contact us to get the real picture

Part No :: RED20-24D15W

Manufacturer: P-Duke Technology, Inc.

Description: ISOLATED / 20W/ VOUT:15

Catalog: DC DC Converters

DataSheet: RED20-24D15W PDF

Availability: 382 pieces

Unit Price: ~~$77.37000~~

Current price of RED20-24D15W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RED20-24D15W Specifications

Type	Description
Series:	RED20W (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	667mA, 667mA
Power (Watts):	20 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Remote On/Off, Standby Output
Operating Temperature:	-40°C ~ 101°C (With Derating)
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	CB, CE, cURus
Standard Number:	60950-1
