| Type | Description |
|---|---|

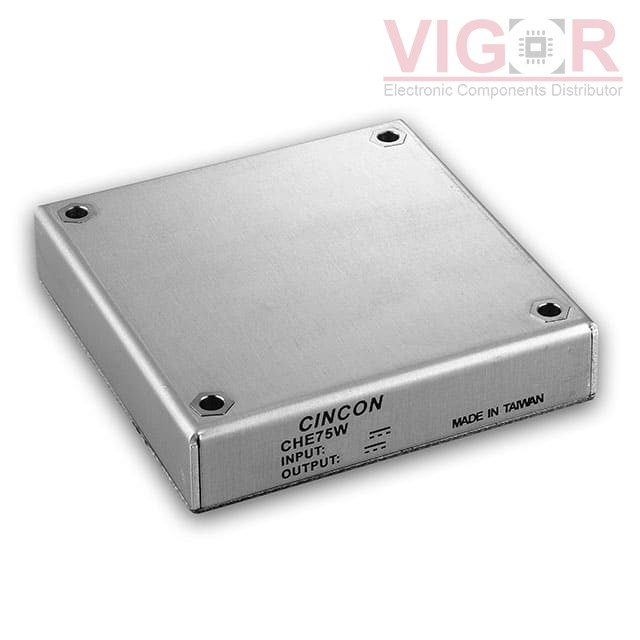

| Series: | CHE75W (75W) |
| Package: | Tray |
| Part Status: | Not For New Designs |
| Type: | Isolated Module |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 9V |
| Voltage - Input (Max): | 36V |
| Voltage - Output 1: | 24V |
| Voltage - Output 2: | - |
| Voltage - Output 3: | - |
| Voltage - Output 4: | - |
| Current - Output (Max): | 3.12A |
| Power (Watts): | 75 W |
| Voltage - Isolation: | 1.5 kV |
| Applications: | ITE (Commercial) |
| Features: | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature: | -40°C ~ 105°C (With Derating) |
| Efficiency: | 90% |
| Mounting Type: | Through Hole |
| Package / Case: | Half Brick |
| Size / Dimension: | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package: | Half Brick |
| Control Features: | Enable, Active High |
| Approval Agency: | - |
| Standard Number: | - |
| Part Number | Manufacturer & Description | Compare |
|---|---|---|
| RP75H-2424SRW/N Match 93% |
RECOM Power
DC DC CONVERTER 24V 76W
|
CHE75W-24S24 vs RP75H-2424SRW/N |
| RP75H-2424SRW/P Match 93% |
RECOM Power
DC DC CONVERTER 24V 76W
|
CHE75W-24S24 vs RP75H-2424SRW/P |
| RP75H-2424SRW/P-HC Match 93% |
RECOM Power
DC DC CONVERTER 24V 76W
|
CHE75W-24S24 vs RP75H-2424SRW/P-HC |
| CHE75W-24S24N Match 100% |
Cincon
DC DC CONVERTER 24V 75W
|
CHE75W-24S24 vs CHE75W-24S24N |
| RP75H-2424SRW/N-HC Match 93% |
RECOM Power
DC DC CONVERTER 24V 76W
|
CHE75W-24S24 vs RP75H-2424SRW/N-HC |
| 75HBAW4_2424S2.25 Match 95% |
TE Connectivity AMP Connectors
DC-DC
|
CHE75W-24S24 vs 75HBAW4_2424S2.25 |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 5 | ||
| 10 | ||
| 25 | ||
| 50 | ||
| 100 |
Current price of CHE75W-24S24 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
