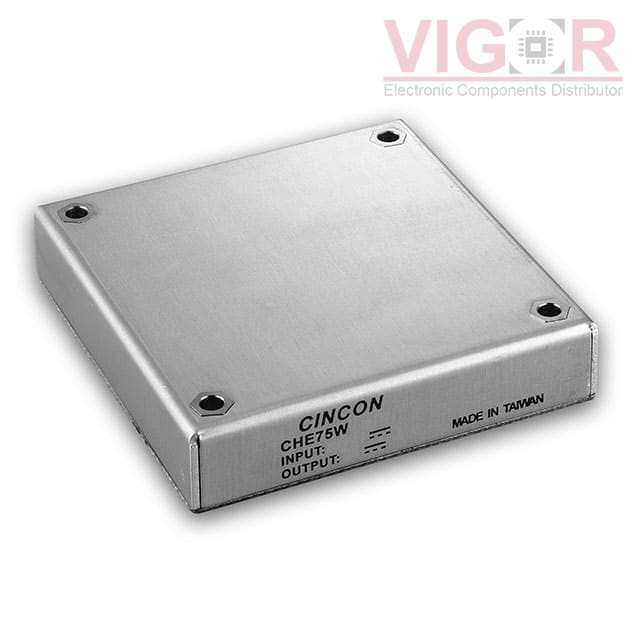

CHE75W-24S24N

Part No :: CHE75W-24S24N

Manufacturer: Cincon

VIGOR # :: 4156318

Description: DC DC CONVERTER 24V 75W

Catalog: DC DC Converters

DataSheet: CHE75W-24S24N PDF

Country of origin: -

Date code: -

CHE75W-24S24N Specifications

Type	Description
Series:	CHE75W (75W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3.12A
Power (Watts):	75 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	Half Brick
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:	Half Brick
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
RP75H-2424SRW/N Match 93%	RECOM Power DC DC CONVERTER 24V 76W	CHE75W-24S24N vs RP75H-2424SRW/N
RP75H-2424SRW/P Match 93%	RECOM Power DC DC CONVERTER 24V 76W	CHE75W-24S24N vs RP75H-2424SRW/P
HAE75-24S24W Match 89%	P-Duke Technology, Inc. ISOLATED /75W /VOUT:24	CHE75W-24S24N vs HAE75-24S24W
RP75H-2424SRW/P-HC Match 93%	RECOM Power DC DC CONVERTER 24V 76W	CHE75W-24S24N vs RP75H-2424SRW/P-HC
RP75H-2424SRW/N-HC Match 93%	RECOM Power DC DC CONVERTER 24V 76W	CHE75W-24S24N vs RP75H-2424SRW/N-HC
75HBAW4_2424S2.25 Match 95%	TE Connectivity AMP Connectors DC-DC	CHE75W-24S24N vs 75HBAW4_2424S2.25

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 138

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$76.3800~~	~~$76.38~~

Current price of CHE75W-24S24N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
