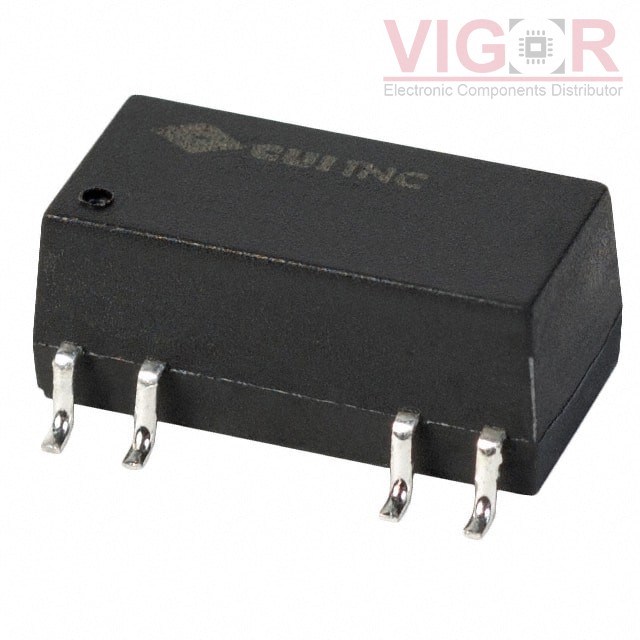

PQM1-S5-S5-M

Part No :: PQM1-S5-S5-M

Manufacturer: CUI Inc.

VIGOR # :: 4125588

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: PQM1-S5-S5-M PDF

Country of origin: -

Date code: -

PQM1-S5-S5-M Specifications

Type	Description
Series:	PQM1-M (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.75V
Voltage - Input (Max):	5.25V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	72%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 6 Leads
Size / Dimension:	0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	EN
Standard Number:	55024; 55032 Class A

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1LR-0505SH30JZTR Match 91%	DComponents DC DC CONVERTER 5V 1W	PQM1-S5-S5-M vs AM1LR-0505SH30JZTR
PQM1-S5-S5-M-TR Match 100%	CUI Inc. DC DC CONVERTER 5V 1W	PQM1-S5-S5-M vs PQM1-S5-S5-M-TR
ISW0505A-H Match 91%	XP Power DC DC CONVERTER 5V 1W	PQM1-S5-S5-M vs ISW0505A-H
ISW0505A Match 100%	XP Power DC DC CONVERTER 5V 1W	PQM1-S5-S5-M vs ISW0505A
ISW0503A Match 56%	XP Power DC DC CONVERTER 3.3V 1W	PQM1-S5-S5-M vs ISW0503A
