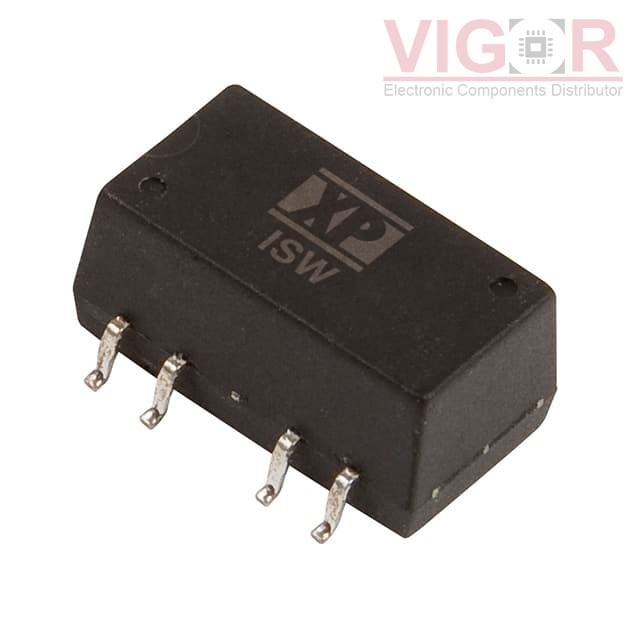

ISW0505A-H

Part No :: ISW0505A-H

Manufacturer: XP Power

VIGOR # :: 4991885

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: ISW0505A-H PDF

Country of origin: -

Date code: -

ISW0505A-H Specifications

Type	Description
Series:	ISW (1W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.75V
Voltage - Input (Max):	5.25V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	72%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 6 Leads
Size / Dimension:	0.60" L x 0.33" W x 0.28" H (15.2mm x 8.3mm x 7.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PQM1-S5-S5-M Match 91%	CUI Inc. DC DC CONVERTER 5V 1W	ISW0505A-H vs PQM1-S5-S5-M
AM1LR-0505SH30JZTR Match 100%	DComponents DC DC CONVERTER 5V 1W	ISW0505A-H vs AM1LR-0505SH30JZTR
R2SX-0505/H-R Match 50%	RECOM Power DC DC CONVERTER 5V 2W	ISW0505A-H vs R2SX-0505/H-R
R2SX-0505/H-TRAY Match 50%	RECOM Power DC DC CONVERTER 5V 2W	ISW0505A-H vs R2SX-0505/H-TRAY
PQM1-S5-S5-M-TR Match 91%	CUI Inc. DC DC CONVERTER 5V 1W	ISW0505A-H vs PQM1-S5-S5-M-TR
ISW0505A Match 91%	XP Power DC DC CONVERTER 5V 1W	ISW0505A-H vs ISW0505A
