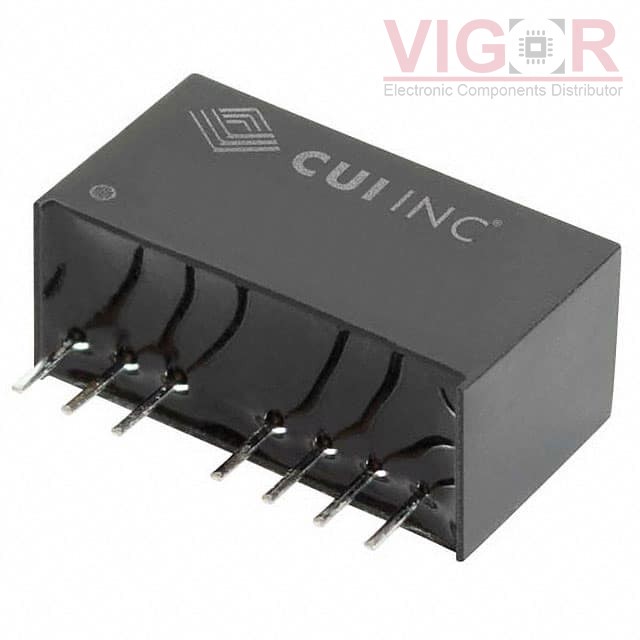

PQMC3-D5-S24-S

Part No :: PQMC3-D5-S24-S

Manufacturer: CUI Inc.

VIGOR # :: 4125908

Description: DC DC CONVERTER 24V 3W

Catalog: DC DC Converters

DataSheet: PQMC3-D5-S24-S PDF

Country of origin: -

Date code: -

PQMC3-D5-S24-S Specifications

Type	Description
Series:	PQMC3-S (3W)
Package:	Tube
Part Status:	Not For New Designs
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	125mA
Power (Watts):	3 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	-
Mounting Type:	Through Hole
Package / Case:	8-SIP Module, 7 Leads
Size / Dimension:	0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	EN
Standard Number:	55024; 55032 Class A

Alternative Products

Part Number	Manufacturer & Description	Compare
HEA2-5S24 Match 70%	Daburn DC DC CONVERTER 24V 2W	PQMC3-D5-S24-S vs HEA2-5S24
PQMC3-D5-S15-S Match 53%	CUI Inc. DC DC CONVERTER 15V 3W	PQMC3-D5-S24-S vs PQMC3-D5-S15-S
EDL03-12S24W Match 99%	P-Duke Technology, Inc. ISOLATED /3W /VOUT:24	PQMC3-D5-S24-S vs EDL03-12S24W
EDL03-05S24 Match 99%	P-Duke Technology, Inc. DC DC CONVERTER 24V 3W	PQMC3-D5-S24-S vs EDL03-05S24

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 723

Shipped from

HK warehouse

Expected Shipping Date

Aug 25 - Aug 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$13.0559~~	~~$13.06~~
44	~~$13.0559~~	~~$574.46~~

Current price of PQMC3-D5-S24-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
