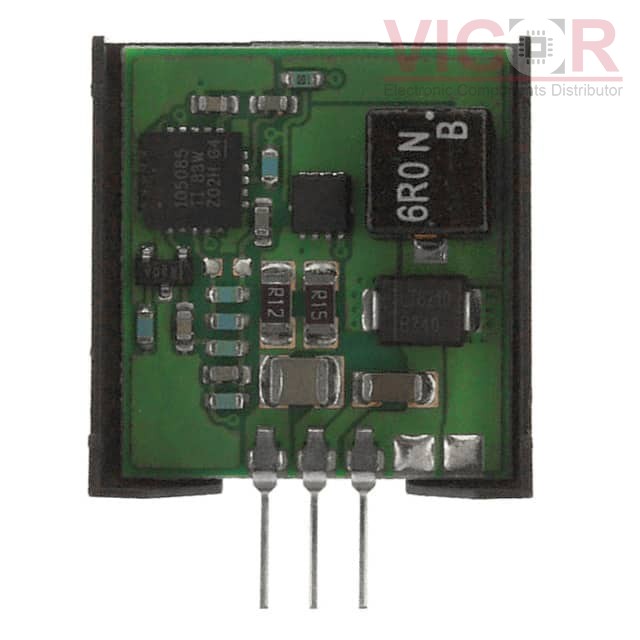

PT78HT253V

Part No :: PT78HT253V

Manufacturer: VIGOR

VIGOR # :: 4126240

Description: SWITCHING REGLTR, VOLTAGE-MODE

Catalog: DC DC Converters

DataSheet: PT78HT253V PDF

Country of origin: -

Date code: -

PT78HT253V Specifications

Type	Description
Series:	PT78HT200
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	28V
Voltage - Output 1:	5.25V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
P7805-2000-S Match 93%	CUI Inc. DC DC CONVERTER 5V 10W	PT78HT253V vs P7805-2000-S
LCW78_05-2.0 Match 93%	TE Connectivity AMP Connectors DC-DC POL	PT78HT253V vs LCW78_05-2.0
TR2024S05 Match 93%	XP Power DC DC CONVERTER 5V	PT78HT253V vs TR2024S05
K7805-2000R3 Match 93%	Mornsun DC DC CONVERTER 5V 10W	PT78HT253V vs K7805-2000R3
LMS78_05-2.0R Match 93%	TE Connectivity AMP Connectors DC-DC POL	PT78HT253V vs LMS78_05-2.0R
LC78_05-2.0 Match 93%	TE Connectivity AMP Connectors DC-DC POL	PT78HT253V vs LC78_05-2.0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 711

Shipped from

HK warehouse

Expected Shipping Date

Aug 25 - Aug 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$10.0800~~	~~$10.08~~

Current price of PT78HT253V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
